Transmission Fluid Cooler Tubes - 6.7L Diesel: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the transmission fluid cooler tubes and install the bolt to the transmission case.
- Tighten to 25 Nm (18 lb-ft).

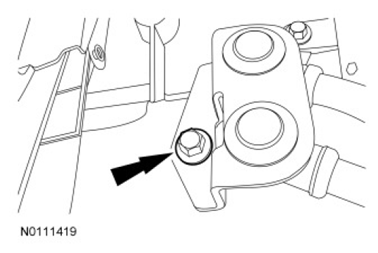

  Fig 1: Locating Transmission Case Mounting Bolt
  Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tube assembly.

Fig 2: Locating Transmission Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tube secondary latches.

Fig 3: Locating Transmission Fluid Cooler Tube Secondary Latches
Courtesy of FORD MOTOR CO.
Position the side wire harness and install the nut.
- Tighten to 12 Nm (106 lb-in).

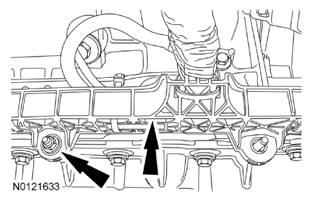

  Fig 4: Locating Side Wire Harness And Nut
  Courtesy of FORD MOTOR CO.
Position the transmission cooler tubes and install the nut.
- Tighten to 12 Nm (106 lb-in).

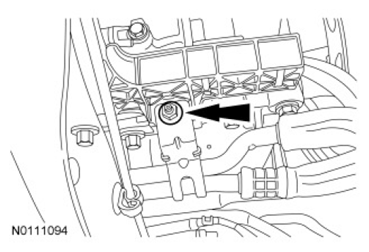

  Fig 5: Locating Transmission Cooler Tube Bracket Nut
  Courtesy of FORD MOTOR CO.
Using a new gasket, install the oil filter adapter, 4 bolts and stud bolt.
- Tighten to 10 Nm (89 lb-in).

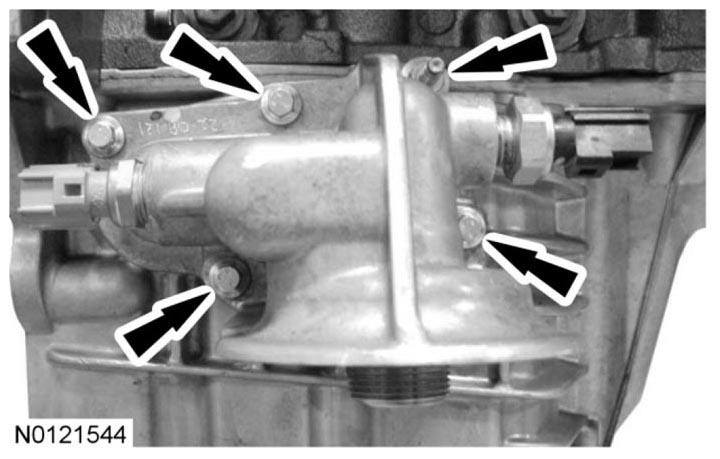

  Fig 6: Locating Oil Filter Adapter, Stud And Bolts
  Courtesy of FORD MOTOR CO.
Position the engine wire harness at the oil filter adapter and install the nut.
- Tighten to 12 Nm (106 lb-in).

  Fig 7: Locating Oil Filter Adapter Nut
  Courtesy of FORD MOTOR CO.
Connect the EOP switch and EOT sensor electrical connectors.

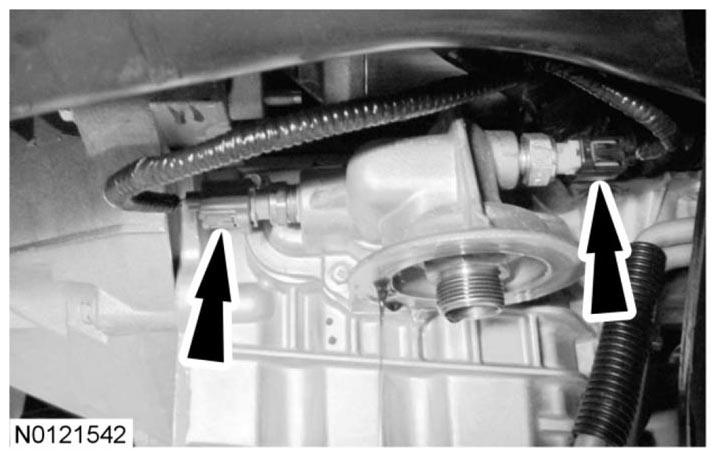

Fig 8: Locating Engine Oil Temperature Sensor And Engine Oil Pressure Switch Electrical Connectors
Courtesy of FORD MOTOR CO.
Install a new oil filter.
Top off the engine with the correct engine oil for the climate. For additional Information, refer to ENGINE - 6.7L DIESEL .
Top off the transmission fluid and check for leaks.
