Auxiliary Transmission Fluid Cooler - Oil-to-Air Fluid Cooler: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Position the OTA transmission fluid cooler into the mounts.

Fig 1: Locating OTA Transmission Fluid Cooler Mounts
Courtesy of FORD MOTOR CO.
Install the 2 OTA transmission fluid cooler bolts.
- Tighten to 8 Nm (71 lb-in).

  Fig 2: Locating OTA Transmission Fluid Cooler Bolts
  Courtesy of FORD MOTOR CO.
Connect the OTA transmission fluid cooler outlet tube.

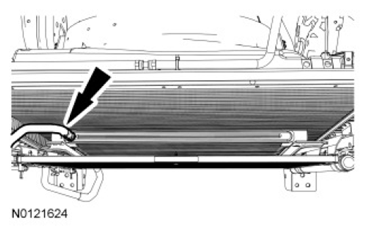

Fig 3: Locating OTA Transmission Fluid Cooler Outlet Tube
Courtesy of FORD MOTOR CO.
Connect the front transmission fluid cooler tube to the OTA fluid cooler.

Fig 4: Locating OTA Fluid Cooler Transmission Fluid Cooler Tube
Courtesy of FORD MOTOR CO.
Install the lower air deflector and 3 pushpins.

Fig 5: Locating Lower Air Deflector Pushpins
Courtesy of FORD MOTOR CO.
Install the 3 remaining pushpins in the lower air deflector.

Fig 6: Locating Lower Air Deflector Pushpins
Courtesy of FORD MOTOR CO.
Position the A/C condenser into the lower brackets and install the 2 bolts.
- Tighten to 8 Nm (71 lb-in).

  Fig 7: Locating A/C Condenser Bracket Bolts
  Courtesy of FORD MOTOR CO.
Install the radiator grille. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .
Fill with transmission fluid and check for leaks.
