Auxiliary Transmission Fluid Cooler - Oil-To-Air (OTA) Fluid Cooler, Gasoline Engine Vehicles
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

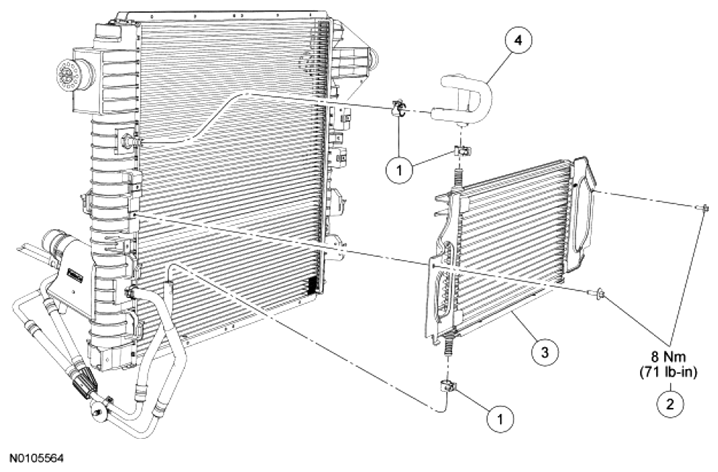

Fig 1: Identifying Auxiliary Transmission Fluid Cooler And Related Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Hose clamps |
| 2 | N808441 | Oil-To-Air (OTA) transmission fluid cooler bolts |
| 3 | 7A095 | OTA transmission fluid cooler assembly |
| 4 | 7890 | Transmission fluid cooler hose |
