Automatic Transmission Fluid Cooling System - 6.2L, TorqShift®6 Equipped Vehicles
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

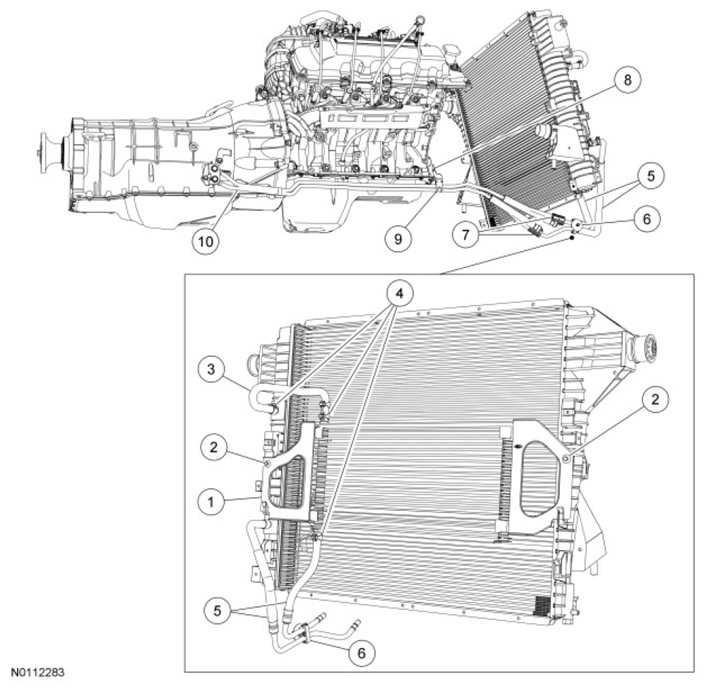

Fig 1: Identifying Automatic Transmission Fluid Cooling System Components (6.2L, TorqShift®6 Equipped Vehicles)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H189 | Oil-To-Air (OTA) transmission fluid cooler assembly |
| 2 | W503924 | OTA transmission fluid cooler bolts |
| 3 | 7890 | Transmission fluid cooler hose |
| 4 | - | Hose clamps |
| 5 | 7H420 | Front transmission fluid cooler tube assembly |
| 6 | - | Front transmission fluid cooler tube assembly-to-frame retainer (part of 7H420) |
| 7 | 7J081 | Transmission fluid cooler tube secondary latches |
| 8 | - | Transmission fluid cooler tube bracket nut |
| 9 | - | Transmission fluid cooler tube bracket (part of 7H420) |
| 10 | 7H420 | Rear transmission fluid cooler tube assembly |
