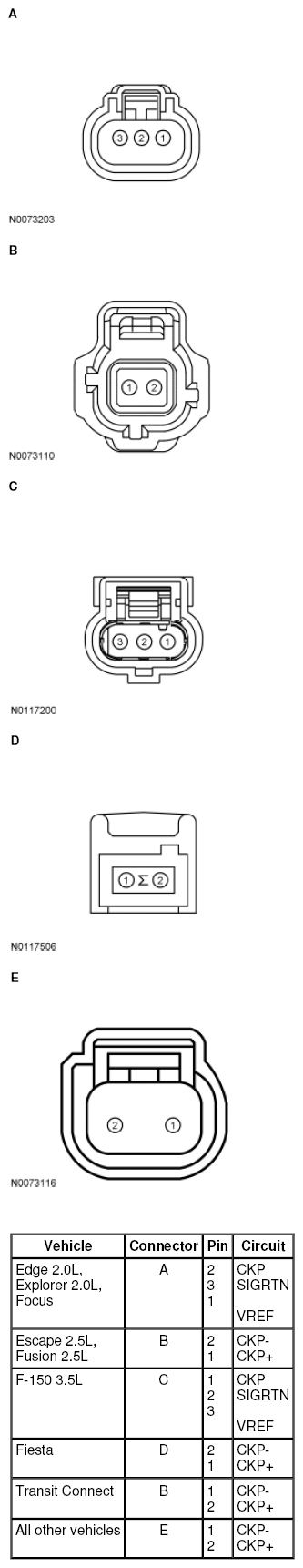

PINPOINT TEST JD: Crankshaft Position (CKP) Sensor: Introduction
This pinpoint test is intended to diagnose the following:
- CKP sensor (6C315)
- harness circuits: CKP(+) and CKP(-)
- powertrain control module (PCM) (12A650)
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES article.
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 4.6L, E-Series 5.4L, Transit Connect | 190-PIN | E58 | CKP+ |
| E42 | CKPE- | ||
| E-Series 6.8L | 170 PIN | E47 | CKP+ |
| E46 | CKP- | ||
| Edge 2.0L, Explorer 2.0L, Focus | 154 PIN | E45 | CKP |
| Expedition, F-150 6.2L, F-150 5.0L, F-Series Super Duty, Motorhome / Stripped Chassis / Step Van, Mustang 5.4L, Mustang 5.0L, Navigator | 190-PIN | E13 | CKP+ |
| E12 | CKP | ||
| F-150 3.5L | 198 PIN | E11 | CKP |
| Fiesta | 128 PIN | T6 | CKP+ |
| T14 | CKP- | ||
| Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, Taurus 4V 3.5L | 190-PIN | E47 | CKP+ |
| E46 | CKP- | ||
| Fusion 3.5L, MKZ | 140 PIN | E47 | CKP+ |
| E46 | CKP- | ||
| All other vehicles | 190-PIN | E62 | CKP+ |
| E63 | CKP- |
