Component Location

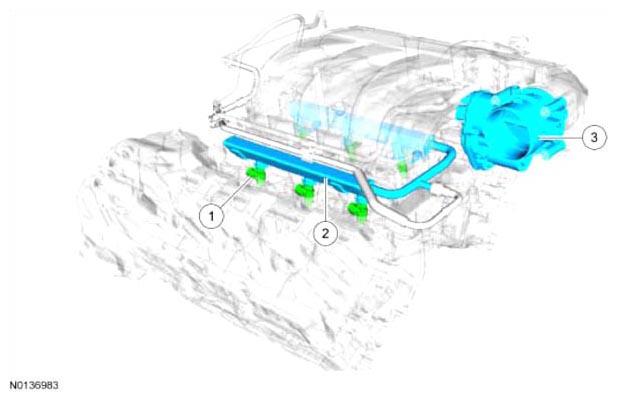

Fig 1: Identifying Fuel Injector, Fuel Rail And Throttle Body
G08030350Courtesy of FORD MOTOR CO.
Item Description Comments
1 Fuel injector -
2 Fuel rail -
3 TB -

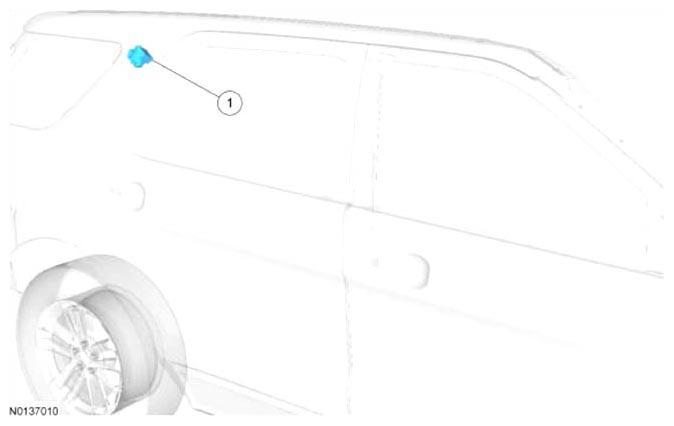

Fig 2: Identifying Fuel Pump Control Module
G08030297Courtesy of FORD MOTOR CO.
Item Description Comments
1 FP control module -
