Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Charging And Controls - 2.0L-GTDI
>>
Description And Operation
>>
Fuel Charging and Controls - 2.0L GTDI
>>
Component Location
Component Location
2.0L GTDI

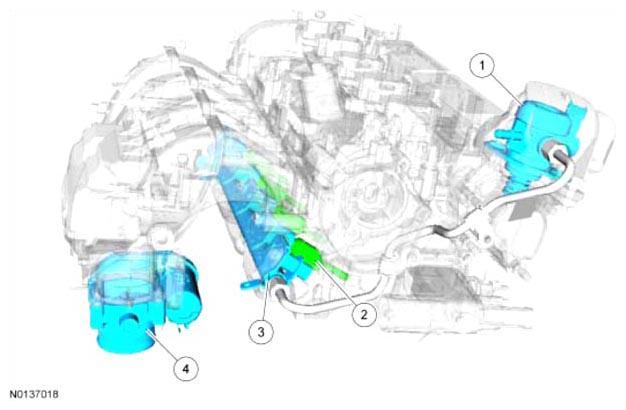

Fig 1: Identifying Fuel Pump, Fuel Injector, Fuel Rail And Throttle Body
Courtesy of FORD MOTOR CO.
Item
Description
Comments
1
Fuel injection pump
2
Fuel injector
-
3
Fuel rail
-
4
TB
-
FP control module
Fig 2: Identifying Fuel Pump Control Module
Courtesy of FORD MOTOR CO.
Item
Description
Comments
1
FP control module
-
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
