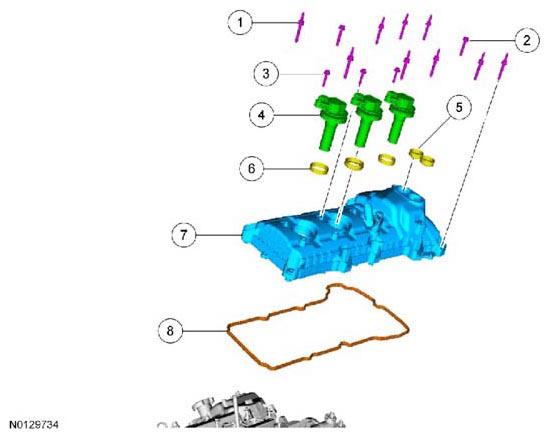

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Valve cover stud bolt (8 required) (part of 6582) | REFER to Installation | - | - |
| 2 | - | Valve cover bolt (3 required) (part of 6582) | REFER to Installation | - | - |
| 3 | W704507 | Ignition coil-on-plug bolt (3 required) | - | - | - |
| 4 | 12029 | Ignition coil-on-plug (3 required) | - | - | - |
| 5 | 6C535 | VCT seal | - | - | - |
| 6 | 6C535 | Spark plug tube seal (3 required) | - | - | - |
| 7 | 6582 | RH valve cover | - | - | - |
| 8 | 6584 | RH valve cover gasket | - | - | - |
