Oil Pan: Installation

Apply a 5.5 mm (0.22 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 engine front cover-to-cylinder block joint areas on the sealing surface of the oil pan.

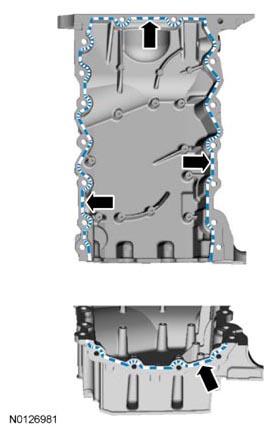

Fig 1: Locating Bead Of Motorcraft® High Performance Engine RTV Silicone
Courtesy of FORD MOTOR CO.
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

Apply a 3 mm (0.12 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan-to-engine block and to the oil pan-to-engine front cover mating surface.

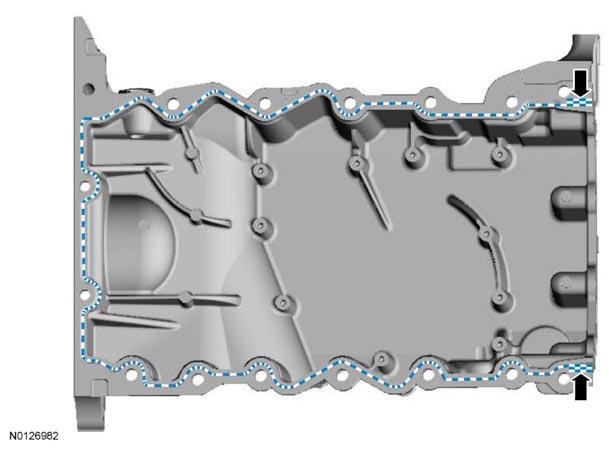

Fig 2: Locating Silicone Applying Areas Of Oil Pan-To-Engine Block And Engine Front Cover Mating Surface
Courtesy of FORD MOTOR CO.

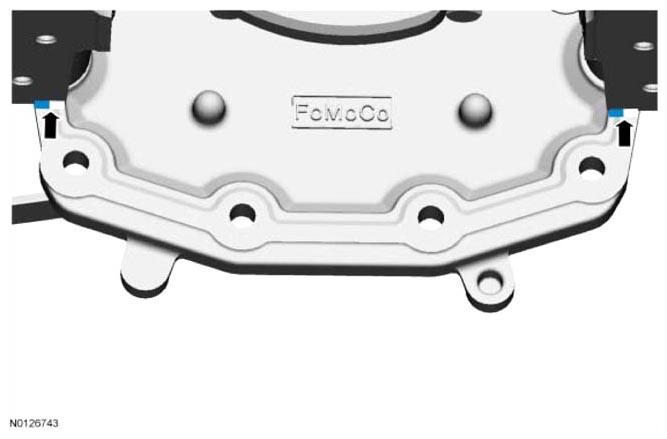

Apply a 5.5 mm (0.2165 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

Fig 3: Locating Bead Of Motorcraft® High Performance Engine RTV Silicone
Courtesy of FORD MOTOR CO.
NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

Install the oil pan and bolts 10, 11, 13 and 14 finger tight.

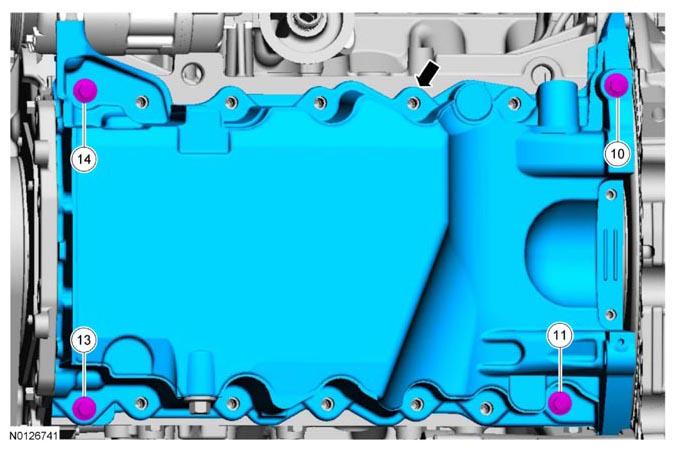

Fig 4: Identifying Oil Pan Bolts
Courtesy of FORD MOTOR CO.
Draw the bellhousing up to the engine by tightening the LH bellhousing-to-engine bolt. Do not torque at this time.

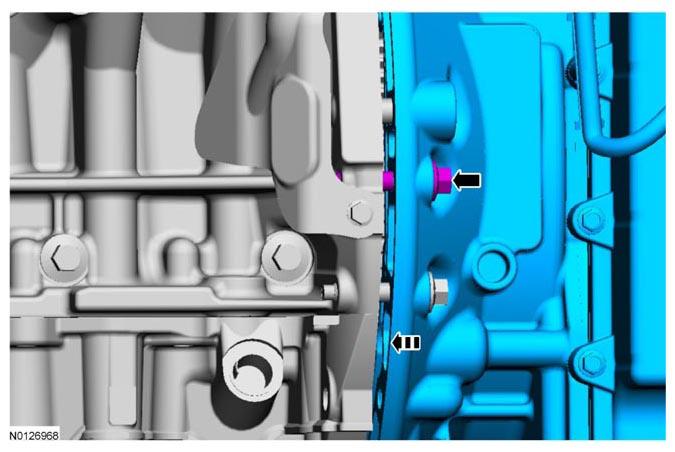

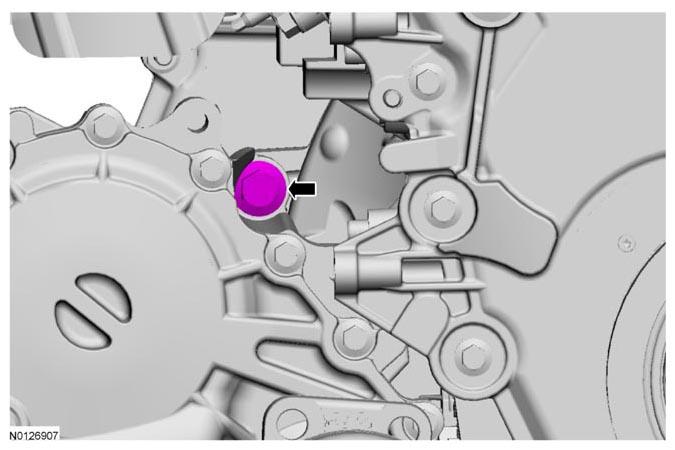

Fig 5: Locating LH Bellhousing-To-Engine Bolt
Courtesy of FORD MOTOR CO.
NOTE: AWD vehicle shown in illustration, FWD similar. Parts removed from graphic for clarity.

Draw the bellhousing up to the engine by tightening the RH bellhousing-to-engine bolt. Do not torque at this time.

Fig 6: Locating RH Bellhousing-To-Engine Bolt
Courtesy of FORD MOTOR CO.
Install the 4 oil pan-to-bellhousing bolts. Do not torque at this time.

Fig 7: Locating Oil Pan-To-Bellhousing Bolt
Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to roll the bottom of the engine back for the A/C compressor stud to clear the subframe.

Install the A/C compressor nut and stud.
- Tighten the stud to 9 Nm (80 lb-in).
- Hand tighten the nut.

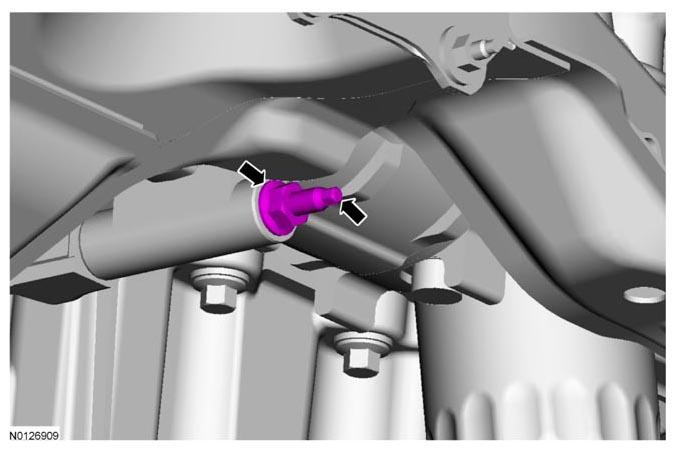

Fig 8: Locating A/C Compressor Nut And Stud
Courtesy of FORD MOTOR CO.
Tighten bolts 10, 11, 13 and 14 in the sequence shown in illustration.
- Tighten to 3 Nm (27 lb-in).

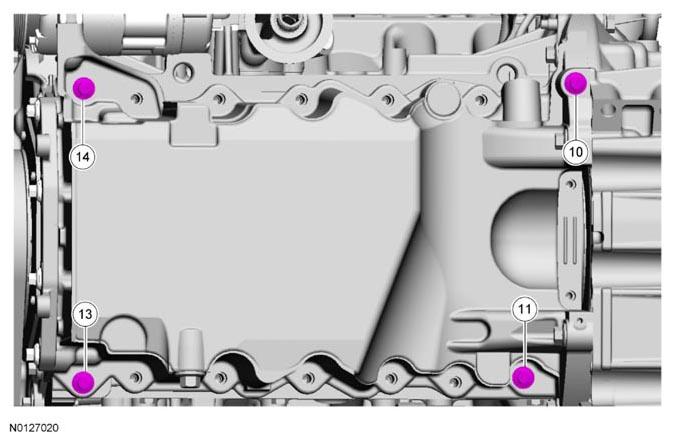

Fig 9: Identifying Oil Pan Mounting Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
Install the 4 lower engine front cover bolts. Do not torque at this time.

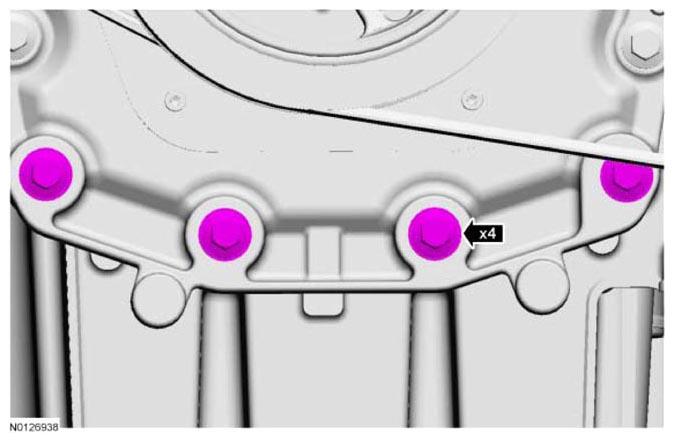

Fig 10: Locating Lower Engine Front Cover Bolts
Courtesy of FORD MOTOR CO.
Install the remaining oil pan bolts and tighten in the sequence shown in illustration.
- Tighten bolts 1 through 9 and 11 through 14 to 20 Nm (177 lb-in), then rotate and additional 45 degrees.
- Tighten bolts 15 and 16 to 10 Nm (89 lb-in), then rotate and additional 45 degrees.
- Tighten bolt 10 to 20 Nm (177 lb-in), then rotate and additional 45 degrees.

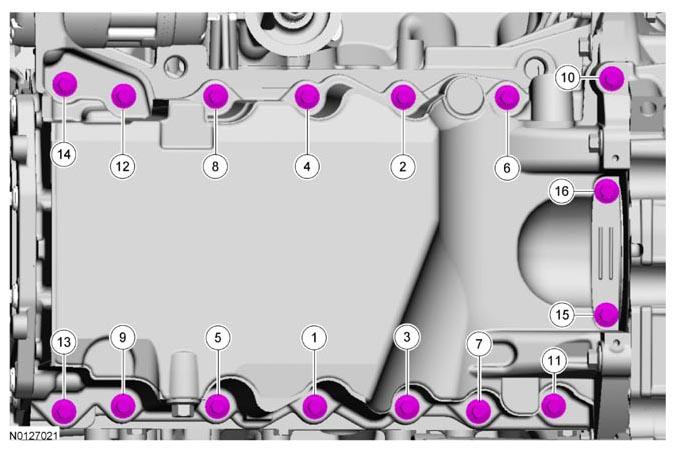

Fig 11: Identifying Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
Tighten the 4 lower engine front cover bolts.
- Tighten to 24 Nm (18 lb-ft).
Fig 12: Locating Lower Engine Front Cover Bolts
Courtesy of FORD MOTOR CO.
Tighten the A/C compressor nut.
- Tighten to 25 Nm (18 lb-ft).
Fig 13: Locating A/C Compressor Nut
Courtesy of FORD MOTOR CO.
Tighten the 4 oil pan-to-bellhousing bolts.
- Tighten to 48 Nm (35 lb-ft).
Fig 14: Locating Oil Pan-To-Bellhousing Bolt
Courtesy of FORD MOTOR CO.
NOTE: AWD vehicle shown in illustration, FWD similar. Parts removed from graphic for clarity.

Tighten the RH bellhousing-to-engine bolt.
- Tighten to 48 Nm (35 lb-ft).
Fig 15: Locating RH Bellhousing-To-Engine Bolt
Courtesy of FORD MOTOR CO.

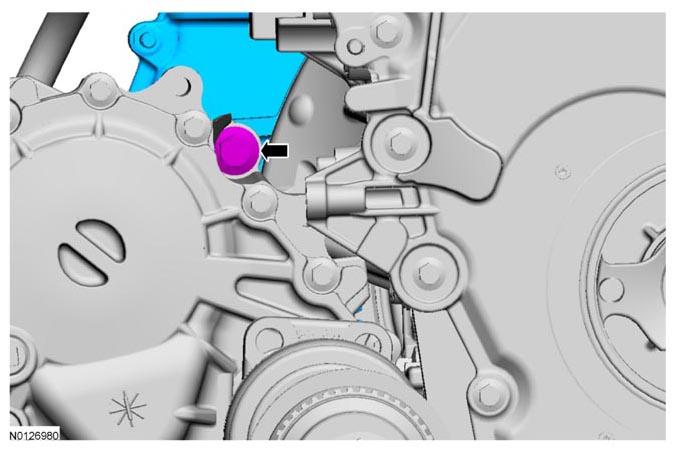

Tighten the 3 LH bellhousing-to-engine bolts.
- Tighten to 48 Nm (35 lb-ft).
Fig 16: Locating LH Bellhousing-To-Engine Bolt
Courtesy of FORD MOTOR CO.
Install the inspection cover and the 2 fasteners.

Fig 17: Locating Inspection Cover And Fasteners
Courtesy of FORD MOTOR CO.

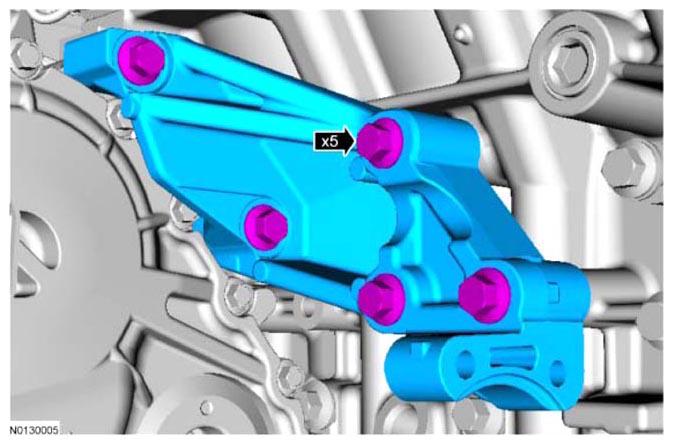

If equipped with AWD, install the 5 PTU support bracket bolts and the PTU support bracket.
- Tighten to 70 Nm (52 lb-ft).
Fig 18: Locating Power Transfer Unit Support Bracket And Mounting Bolts
Courtesy of FORD MOTOR CO.
If equipped with AWD, install the RH catalytic converter. REFER to CATALYTIC CONVERTER - RH, AWD
Install the exhaust Y-pipe. REFER to EXHAUST Y-PIPE .
NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.
- Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

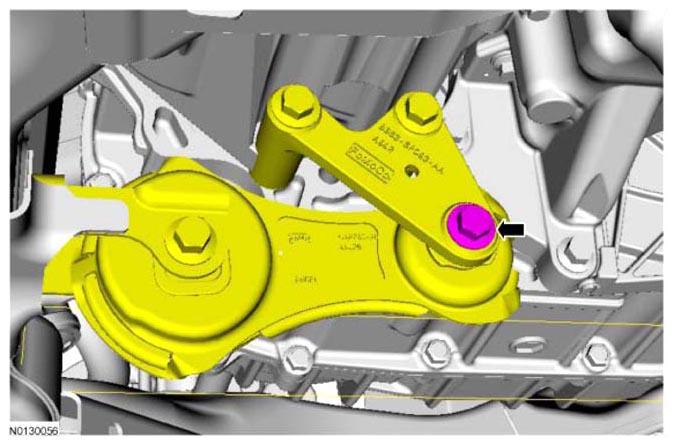

Install the roll restrictor-to-transaxle bolt.
- Tighten to 90 Nm (66 lb-ft).
Fig 19: Locating Roll Restrictor-To-Transaxle Bolt
Courtesy of FORD MOTOR CO.
Install the air duct and 3 twist-type retainers to the subframe.

Fig 20: Locating Underbody Air Duct And Twist Lock Retainers
Courtesy of FORD MOTOR CO.

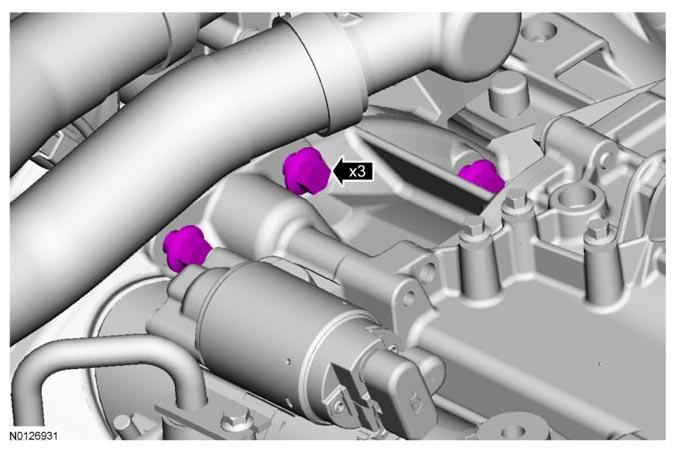

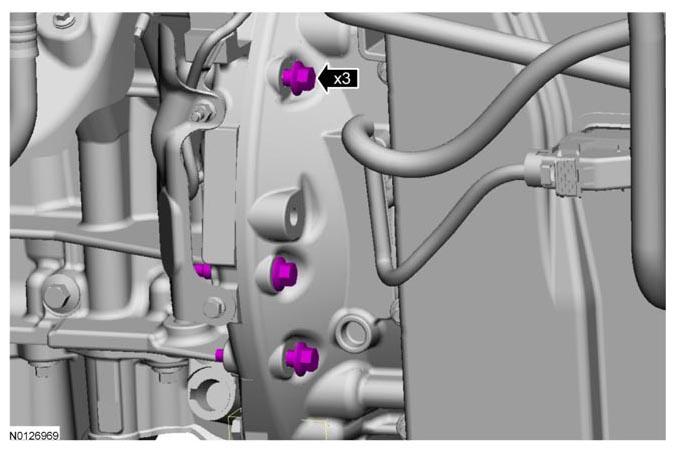

Tighten the 3 upper bellhousing-to-engine bolts.
- Tighten to 48 Nm (35 lb-ft).
Fig 21: Locating Upper Bellhousing-To-Engine Bolts
Courtesy of FORD MOTOR CO.

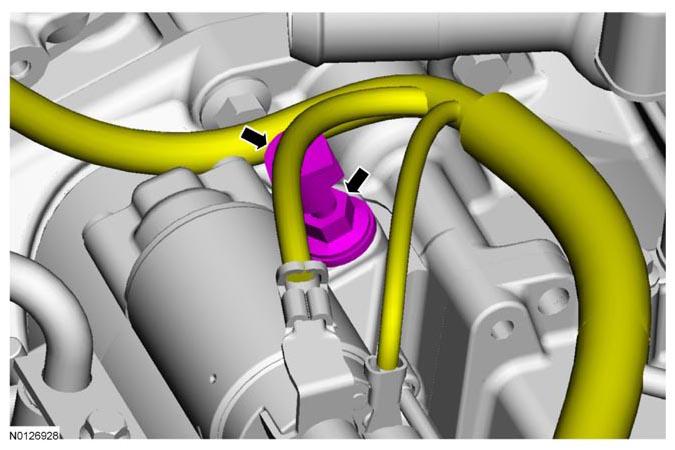

Install the starter stud bolt and attach the wire harness retainer to the starter stud bolt.
- Tighten to 27 Nm (20 lb-ft).
Fig 22: Locating Starter Stud Bolt And Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Install the oil level indicator.

Fig 23: Locating Oil Level Indicator
Courtesy of FORD MOTOR CO.
Install the battery tray. REFER to BATTERY AND BATTERY TRAY - EXPLODED VIEW .
Install the ACL tray assembly and ACL outlet pipe. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
Fill the engine with clean engine oil.
