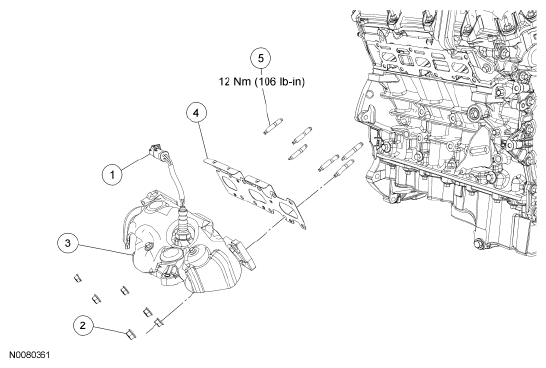

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | RH HO2S electrical connector (part of 12C508) | - | - | - |
| 2 | W701706 | RH exhaust manifold nut (6 required) | REFER to Installation | - | - |
| 3 | 9430 | RH exhaust manifold | - | - | - |
| 4 | 9448 | RH exhaust manifold gasket | - | - | - |
| 5 | W712244 | RH exhaust manifold stud (6 required) | REFER to Installation | - | - |
