Crankshaft Rear Seal with Retainer Plate: Installation

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 cylinder block/oil pan joints.

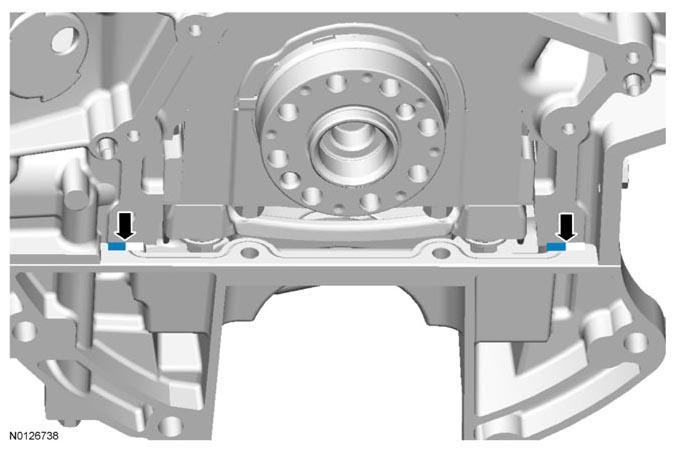

Fig 1: Locating Cylinder Block/Oil Pan Joints
Courtesy of FORD MOTOR CO.
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

Apply a 3 mm (0.1181 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

Fig 2: Locating Sealing Surface On Crankshaft Rear Seal Retainer
Courtesy of FORD MOTOR CO.
NOTE: Use the 2 oil pan bolts as handles during installation to avoid touching the sealant.

Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer. Tilt the seal retainer up and onto the rear of the cylinder block.

Fig 3: Installing Crankshaft Rear Seal Retainer
Courtesy of FORD MOTOR CO.
Install the rear seal retainer and the 8 bolts in the sequence shown in illustration.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
Fig 4: Identifying Crankshaft Rear Seal Retainer And Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
Install the rear seal retainer and the 8 bolts in the sequence shown in illustration.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in) plus an additional 45 degrees.
NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

Install the 2 oil pan to crankshaft rear seal retainer bolts.

Fig 5: Installing Crankshaft Rear Seal Using Rear Main Seal Installer And Handle
Courtesy of FORD MOTOR CO.
Using 303-1250 and 205-153 (T80T-4000-W), install the new crankshaft rear seal.

Fig 6: Installing Crankshaft Rear Seal
Courtesy of FORD MOTOR CO.
Install the CKP sensor and install the bolt.
- Tighten to 10 Nm (89 lb-in).
Fig 7: Locating CKP Sensor And Bolt
Courtesy of FORD MOTOR CO.
Connect the CKP sensor electrical connector.

Fig 8: Locating Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the crank sensor ring.
Install the flexplate. REFER to Flexplate .
