Engine Upper - LH Cylinder Head

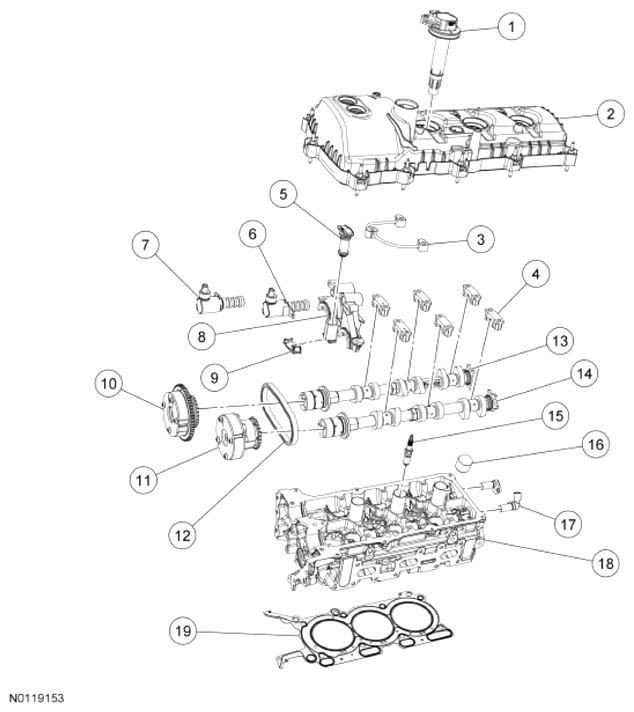

Fig 1: Exploded View Of Lower Engine Components (View 2)

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description
1	12029	Ignition coil-on-plug (3 required)
2	6582	LH valve cover
3	6K602	Valve train oil feed tube
4	6A258	LH camshaft cap (6 required)
5	6K254	LH secondary timing chain tensioner
6	6M280	Exhaust camshaft VCT oil control solenoid
7	6M280	Exhaust camshaft VCT oil control solenoid
8	6B280	Camshaft mega cap
9	6K297	LH secondary tensioner shoe
10	6C524	Intake camshaft VCT assembly
11	6C525	Exhaust camshaft VCT assembly
12	6268	LH secondary timing chain
13	6250	LH intake camshaft
14	6250	LH exhaust camshaft
15	12405	Spark plug (3 required)
16	6500	Valve tappet (24 required)
17	6B288	LH cylinder head CMP sensor (2 required)
18	6049	LH cylinder head
19	6051	LH cylinder head gasket
