Exploded View

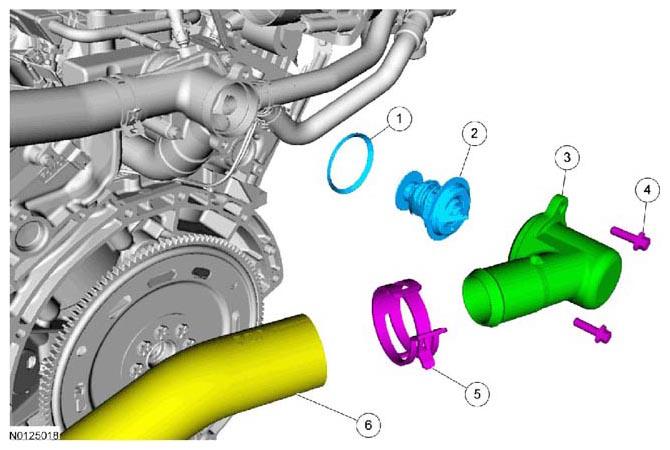

Fig 1: Identifying Thermostat, O-Ring Seal, Lower Radiator Hose, Clamp, Coolant Inlet Connection And Bolt
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 8255 | Thermostat O-ring seal | - | Motorcraft® Specialty Green Engine Coolant | - |
| 2 | 8575 | Thermostat | - | - | - |
| 3 | - | Coolant inlet connection (part of 8A586 ) | - | - | - |
| 4 | W500014 | Coolant inlet connection bolt | 10 Nm (89 lb-in) | - | - |
| 5 | - | Lower radiator hose clamp (part of 8286 ) | - | - | - |
| 6 | 8286 | Lower radiator hose | - | - | - |
