Exploded View

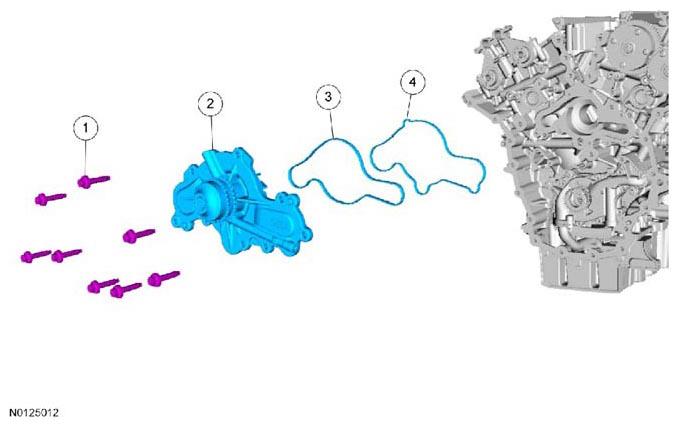

Fig 1: Identifying Coolant Pump, Gasket And Bolts
G07420421Courtesy of FORD MOTOR CO.
Item Service Part Number Description Torque Material Name Notes
1 W503278  Coolant pump bolt (8 required) - - -
2 8501  Coolant pump - - -
3 8507  Coolant pump gasket - - -
4 8507  Coolant pump gasket - - -
