Coolant Pump - 2.0L GTDI: Removal

  1. REFER to Cooling System Draining, Filling and Bleeding - 2.0L GTDI .
  2. Fig 1: Locating Water Pump Pulley Bolt
    G08030247Courtesy of FORD MOTOR CO.

    Loosen 2 turns.

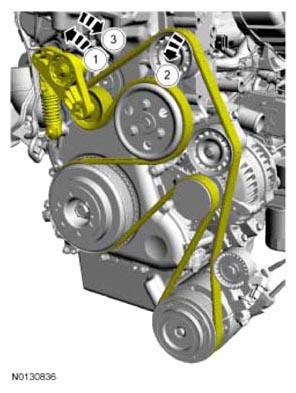

  3. Fig 2: Belt Routing Diagram - 2.0L GTDI
    G08030248Courtesy of FORD MOTOR CO.
  4. Fig 3: Locating Water Pump Pulley Bolt
    G08030249Courtesy of FORD MOTOR CO.
  5. Fig 4: Locating Coolant Cover Bolt
    G08030250Courtesy of FORD MOTOR CO.

    Discard the O-ring seal.
