Coolant Pump - 2.0L GTDI: Installation

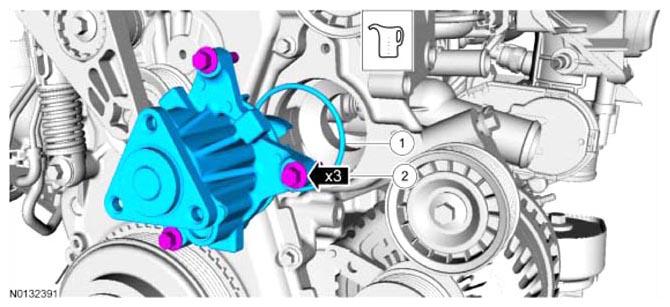

Fig 1: Identifying O-Ring Seal And Coolant Cover Bolt
Courtesy of FORD MOTOR CO.
1. Apply Motorcraft® Specialty Green Engine Coolant or.
2. 10 Nm (89 lb-in).

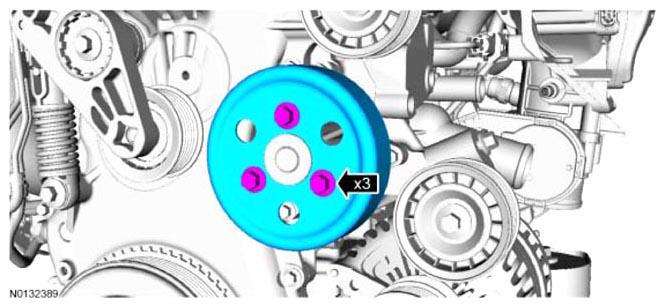

Fig 2: Locating Water Pump Pulley Bolt
Courtesy of FORD MOTOR CO.

Finger-tight.

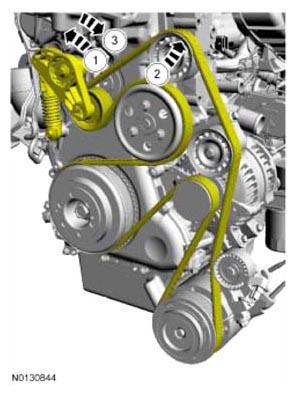

Fig 3: Belt Routing - 2.0L GTDI
Courtesy of FORD MOTOR CO.

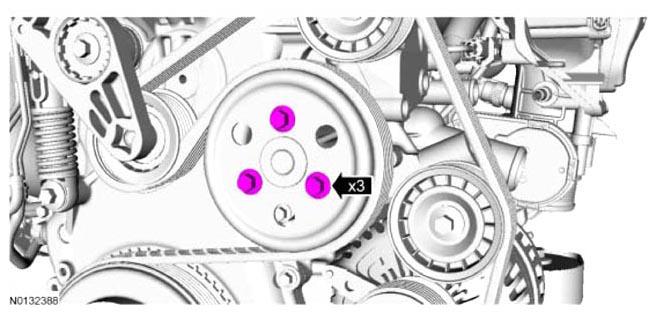

Fig 4: Locating Water Pump Pulley Bolt
Courtesy of FORD MOTOR CO.

20 Nm (177 lb-in).
REFER to Cooling System Draining, Filling and Bleeding - 2.0L GTDI .
