Exploded View

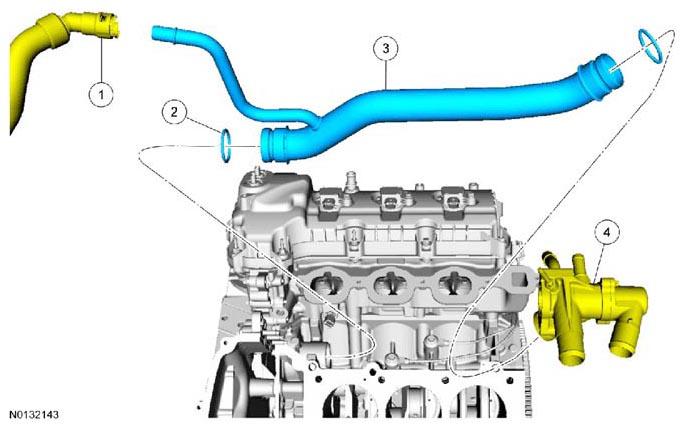

Fig 1: Identifying Degas Bottle-To-Coolant Inlet Pipe Hose, Thermostat Housing, Coolant Inlet Pipe And O-Ring Seal
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 8C289 | Degas bottle-to-coolant inlet pipe hose | - | - | - |
| 2 | 8527 | Coolant inlet pipe O-ring seal (2 required) | - | Motorcraft® Specialty Green Engine Coolant | - |
| 3 | 8A505 | Coolant inlet pipe | - | - | - |
| 4 | 8A586 | Thermostat housing | - | - | - |
