Exploded View

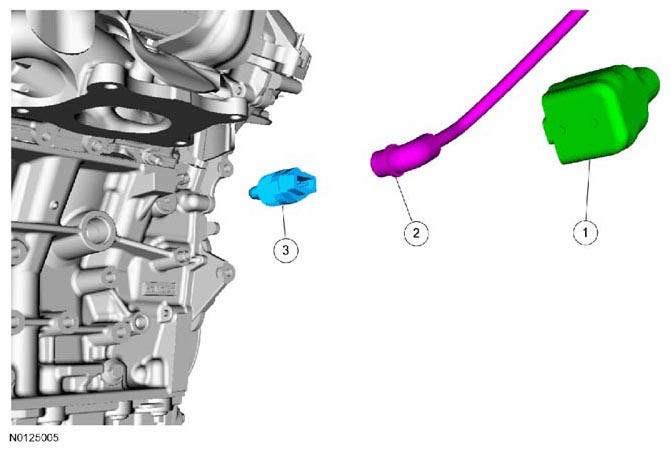

Fig 1: Identifying Block Heater, Wiring Harness And Electrical Connector Heat Shield
G07420405Courtesy of FORD MOTOR CO.
Item Service Part Number Description Torque Material Name Notes
1 - Block heater electrical connector heat shield (Part of 6B018  ) - - -
2 6B018  Block heater wiring harness - - -
3 6A051  Block heater 40 Nm (30 lb-ft) - -
