Block Heater - 2.0L GTDI: Removal

NOTE: Removal steps in this procedure may contain installation details.

REFER to Cooling System Draining, Filling and Bleeding - 2.0L GTDI .
NOTE: To install, route the block heater power cable away from hot or rotating components, or the cable can be damaged.

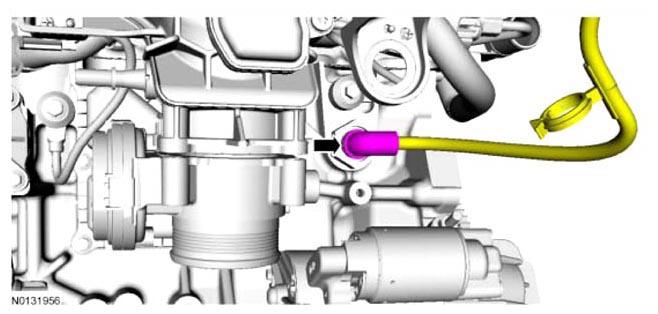

Fig 1: Locating Block Heater Power Cable Plug
Courtesy of FORD MOTOR CO.

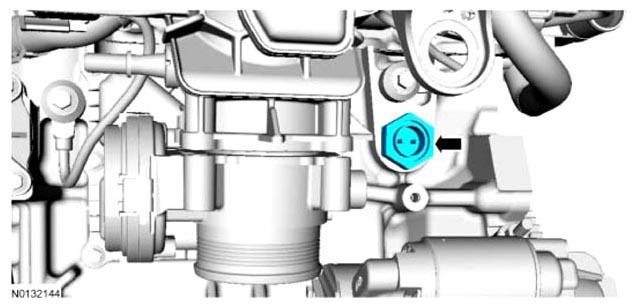

Fig 2: Locating Block Heater Power Cable Plug Connecting Pin
Courtesy of FORD MOTOR CO.

40 Nm (30 lb-ft).
