With Blind Spot Information System (BLIS)®

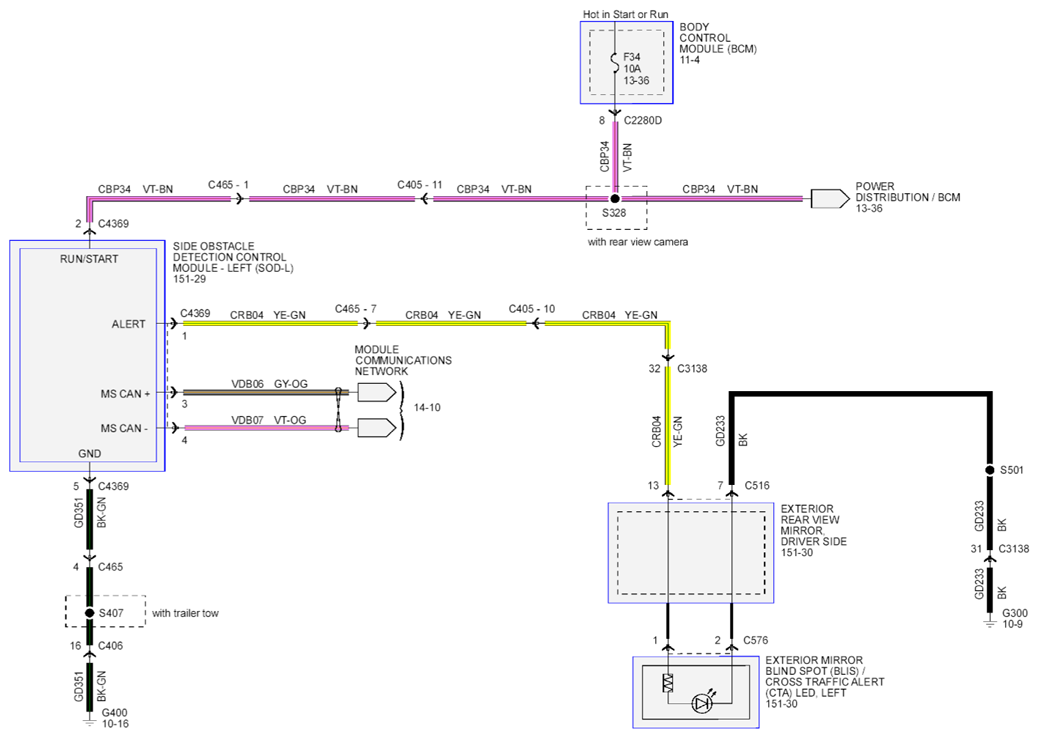

Fig 1: Vehicle Emergency Messaging System Circuit Diagram (With Blind Spot Information System) (1 Of 2)
G07895545Courtesy of FORD MOTOR CO.

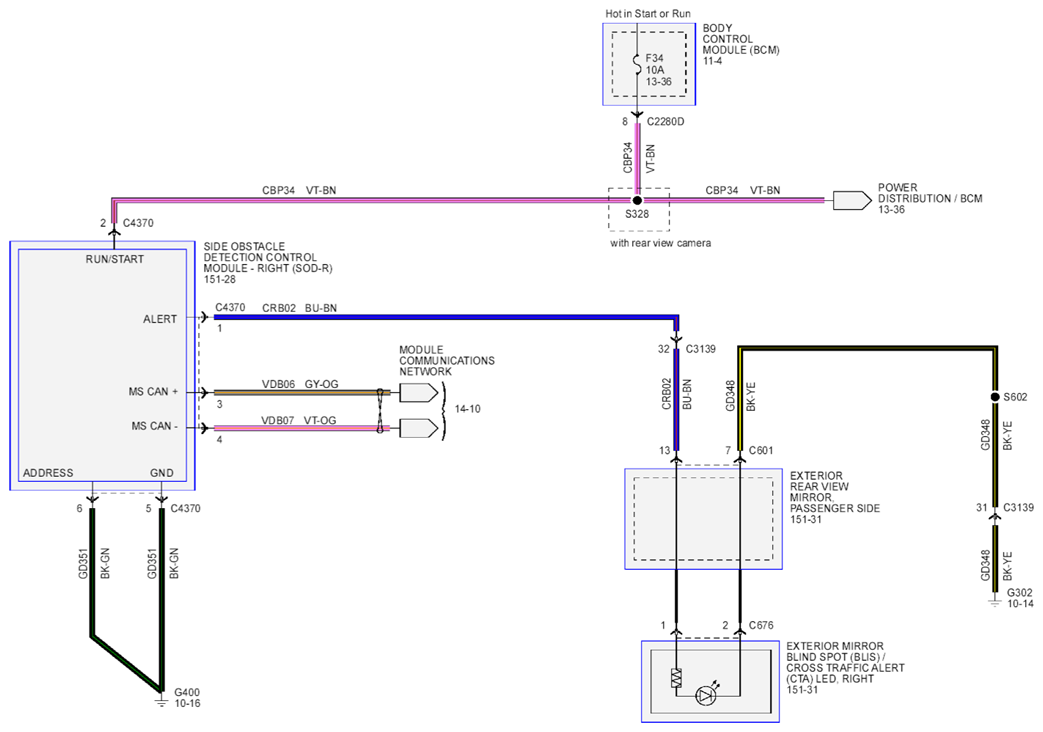

Fig 2: Vehicle Emergency Messaging System Circuit Diagram (With Blind Spot Information System) (2 Of 2)
G07895546Courtesy of FORD MOTOR CO.
