Transmission Controls - 6F35
Transmission Controls - 6F35

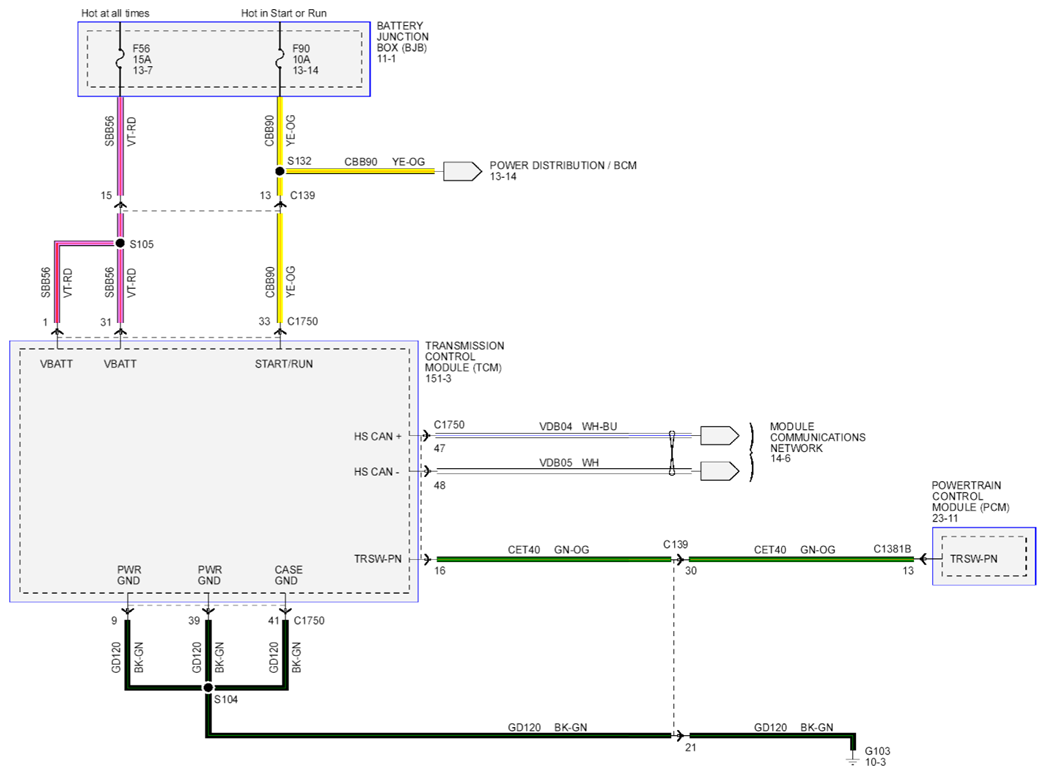

Fig 1: Transmission Controls (6F35) Circuit Diagram (View 1 Of 3)
Courtesy of FORD MOTOR CO.

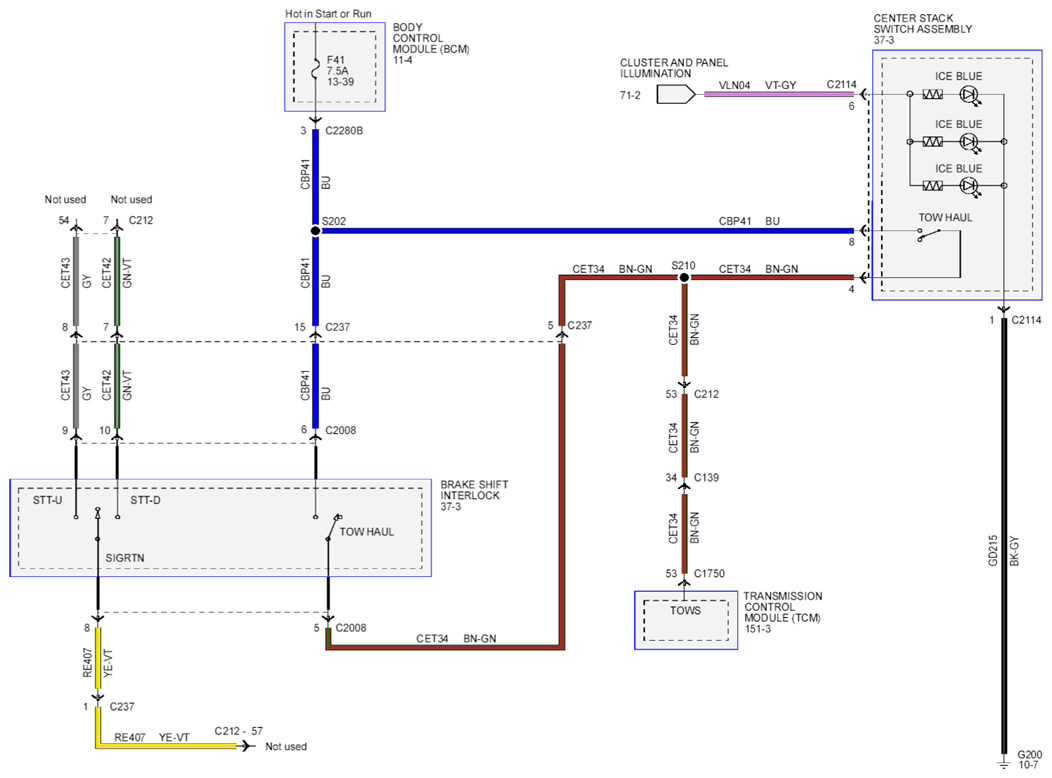

Fig 2: Transmission Controls (6F35) Circuit Diagram (View 2 Of 3)
Courtesy of FORD MOTOR CO.

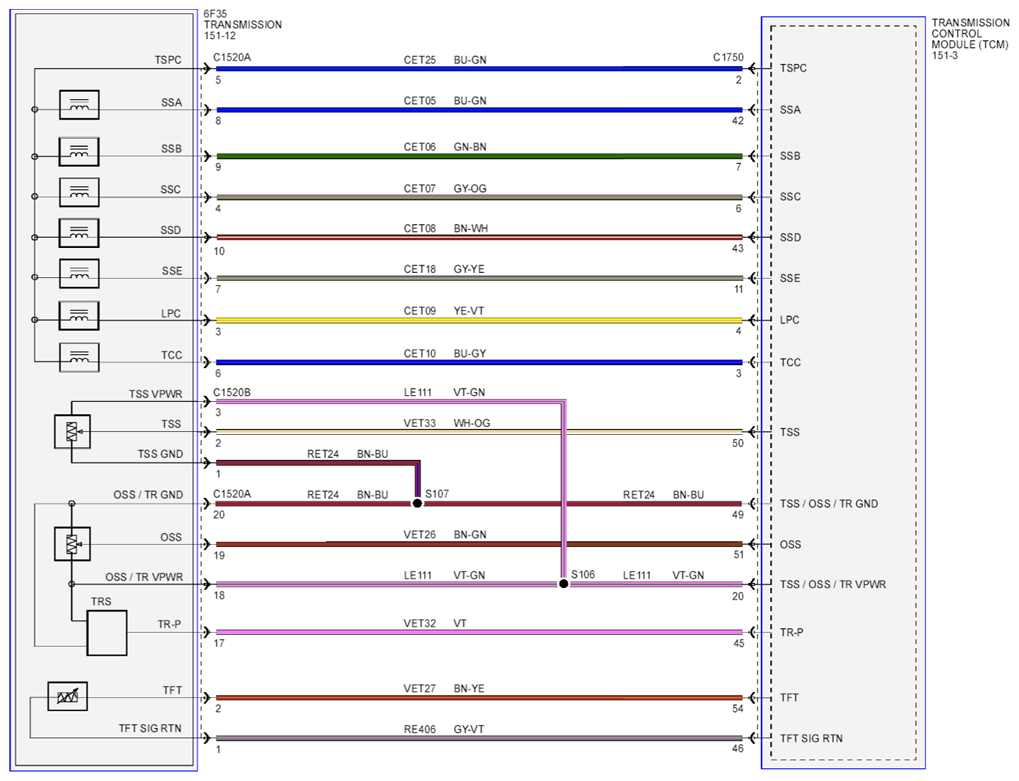

Fig 3: Transmission Controls (6F35) Circuit Diagram (View 3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
