Ford
>>
2012
>>
Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Shift Interlock
>>
With IA
With IA

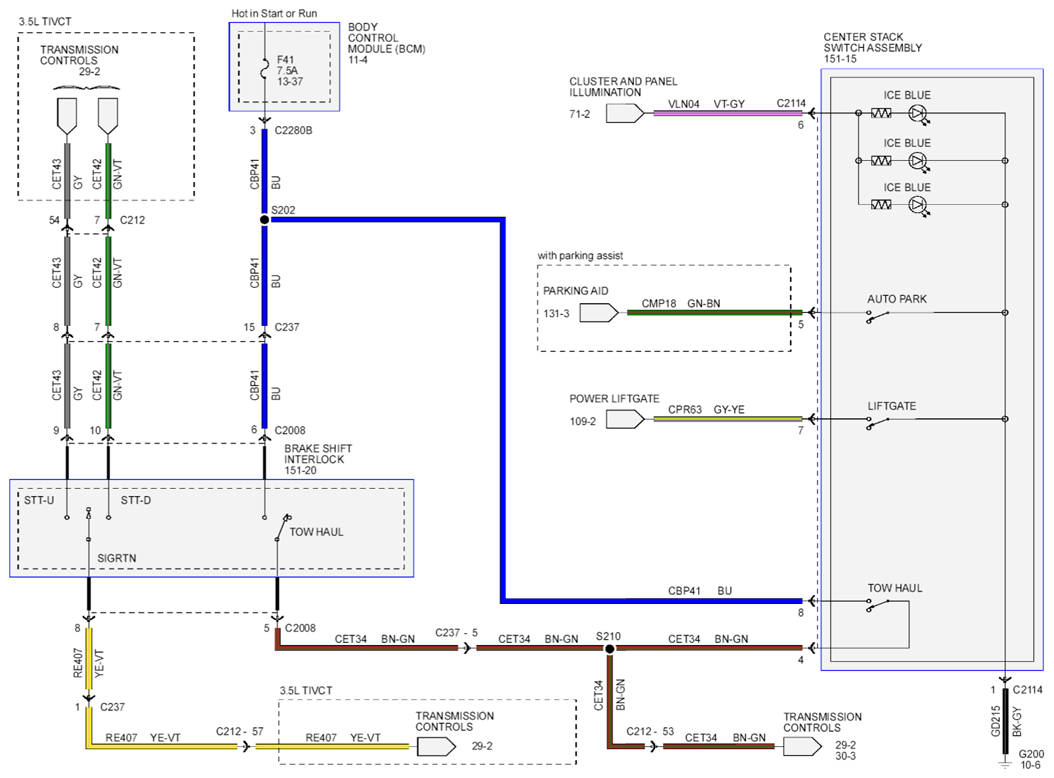

Fig 1: Shift Interlock (With IA) Circuit Diagram (View 2 Of 3)
Courtesy of FORD MOTOR CO.

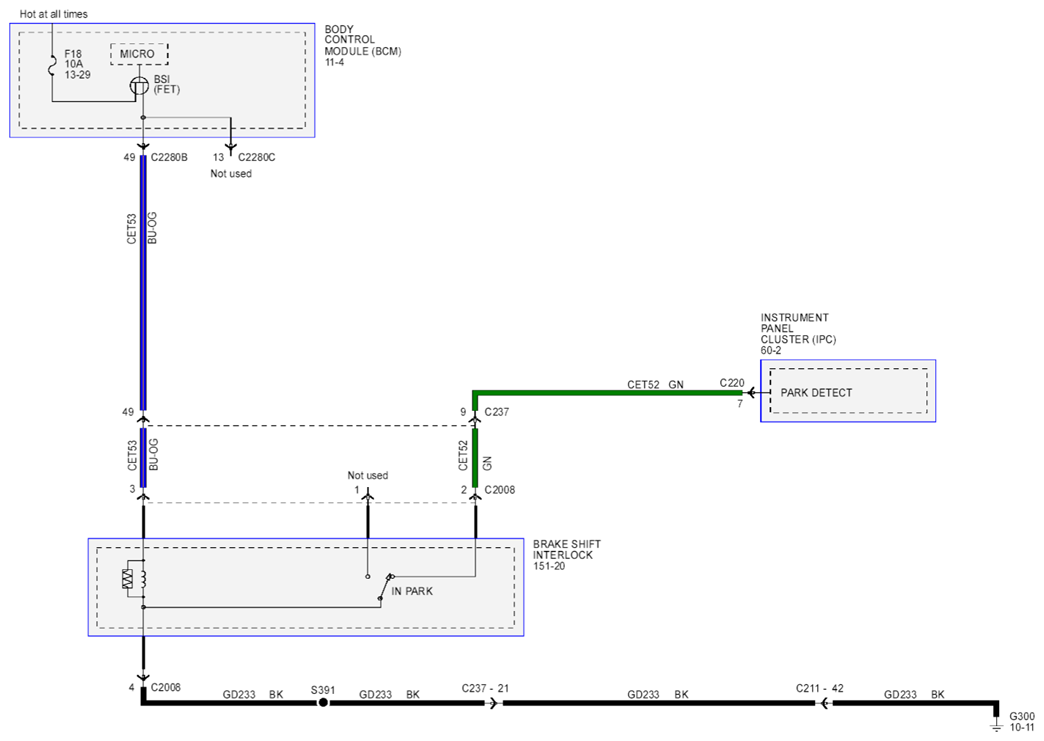

Fig 2: Shift Interlock Circuit Diagram (With IA) (View 3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
