Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Remote Keyless Entry and Alarm
>>
Without IA
Without IA

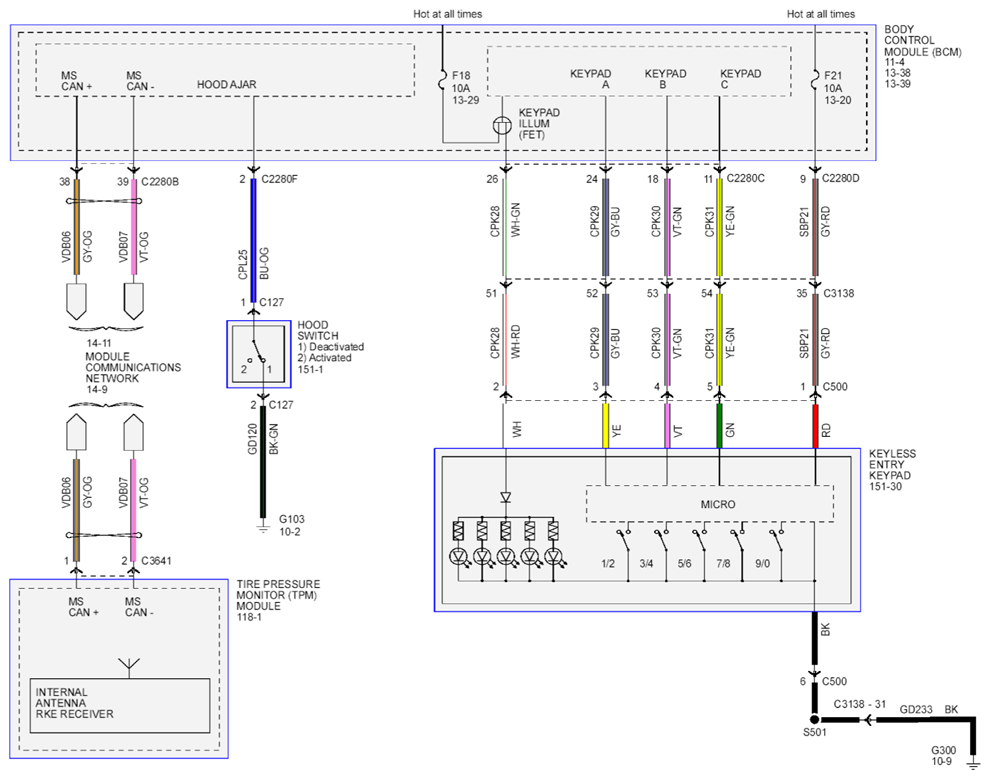

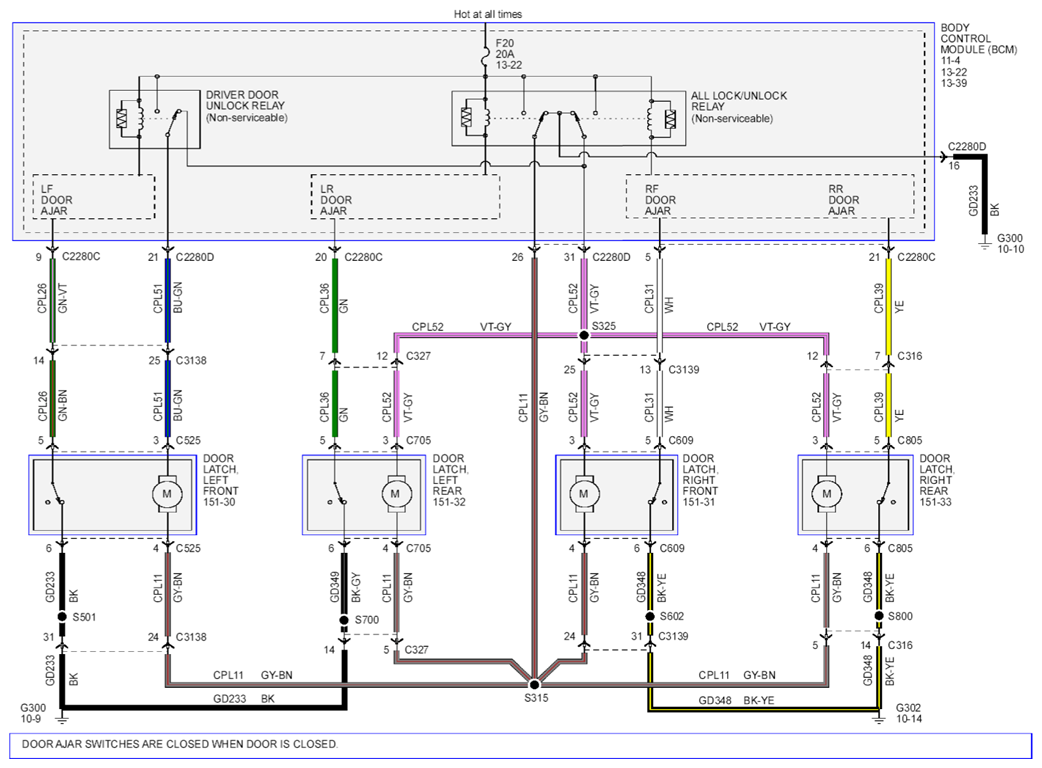

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram (Without IA)
Courtesy of FORD MOTOR CO.
Fig 1: Remote Keyless Entry And Alarm Circuit Diagram (Without IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
