Home >> Ford >> 2012 >> Explorer Base, 3.5 8, AWD, 6F50 >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Power Windows >> XLT, Limited

XLT, Limited

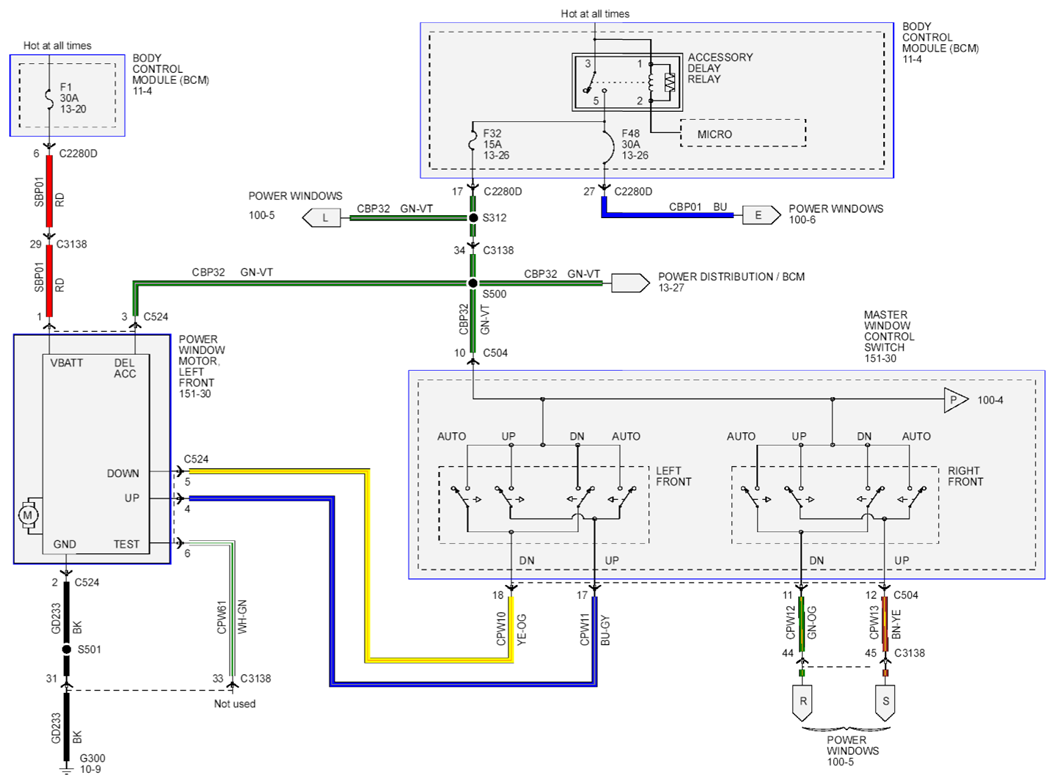

Fig 1: Power Windows Circuit Diagram (XLT, Limited) (1 Of 4)
G07895466Courtesy of FORD MOTOR CO.

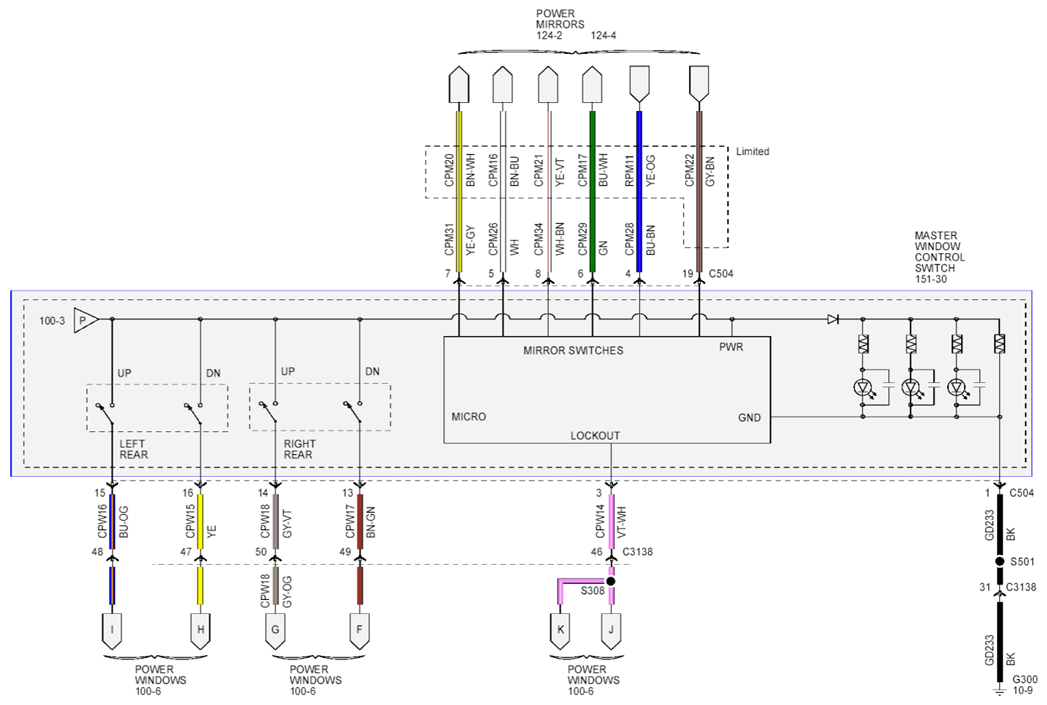

Fig 2: Power Windows Circuit Diagram (XLT, Limited) (2 Of 4)
G07895467Courtesy of FORD MOTOR CO.

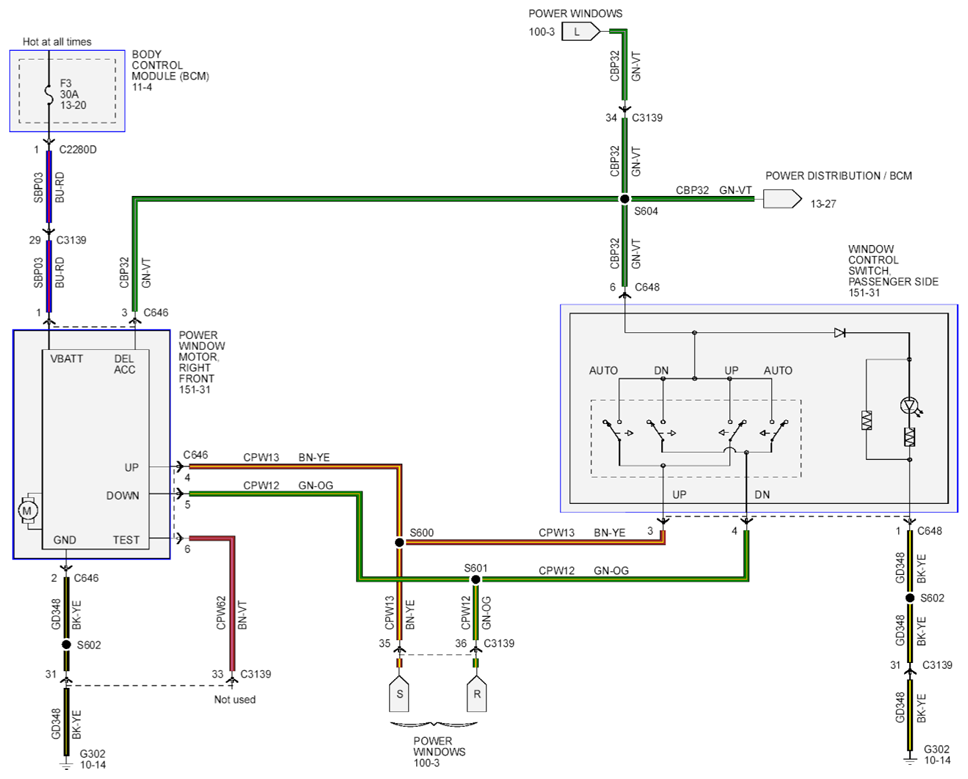

Fig 3: Power Windows Circuit Diagram (3 Of 4)
G07895468Courtesy of FORD MOTOR CO.

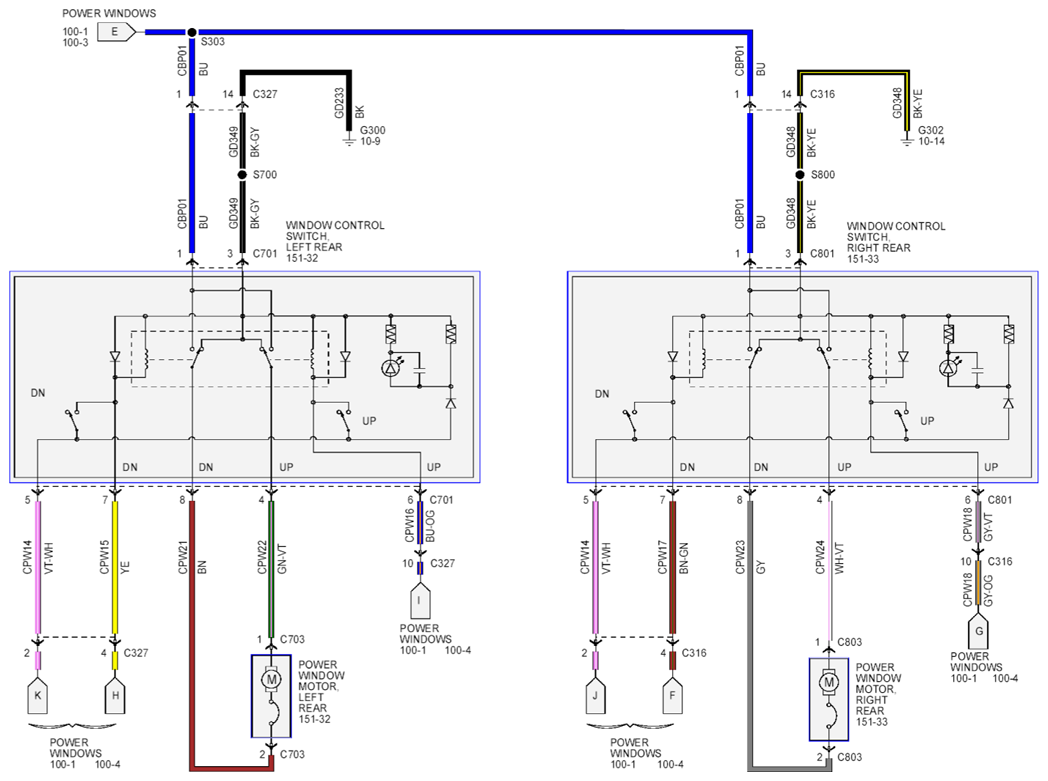

Fig 4: Power Windows Circuit Diagram (4 Of 4)
G07895469Courtesy of FORD MOTOR CO.
