With Third Row Folding Seats

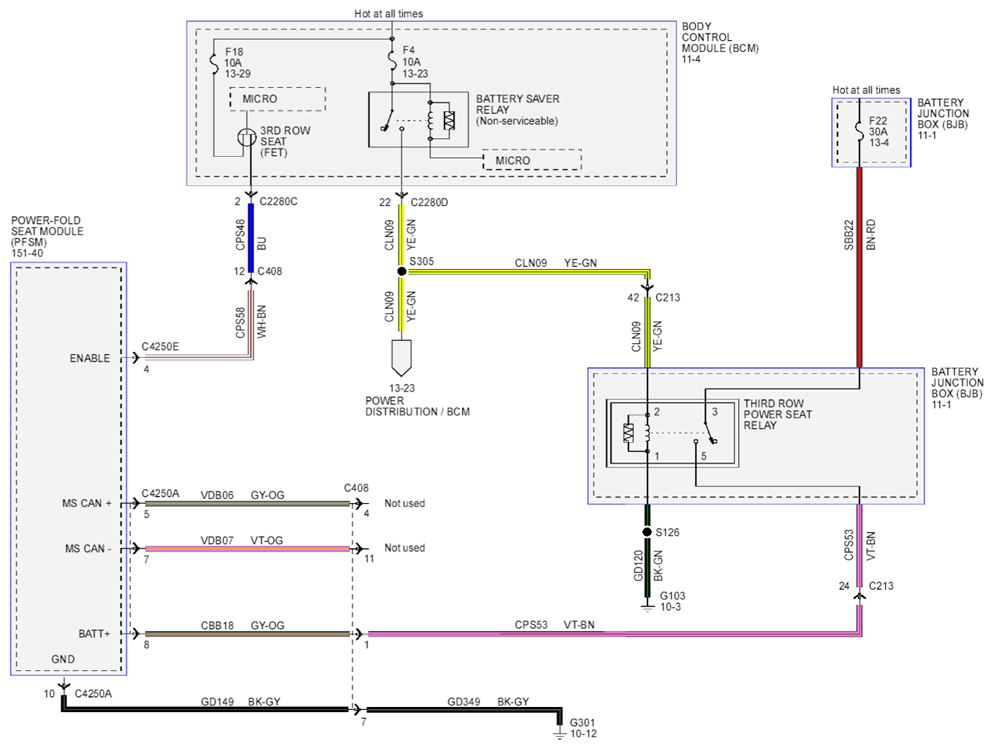

Fig 1: Power Seats Circuit Diagram (With Third Row Folding Seats) (1 Of 3)
G07895502Courtesy of FORD MOTOR CO.

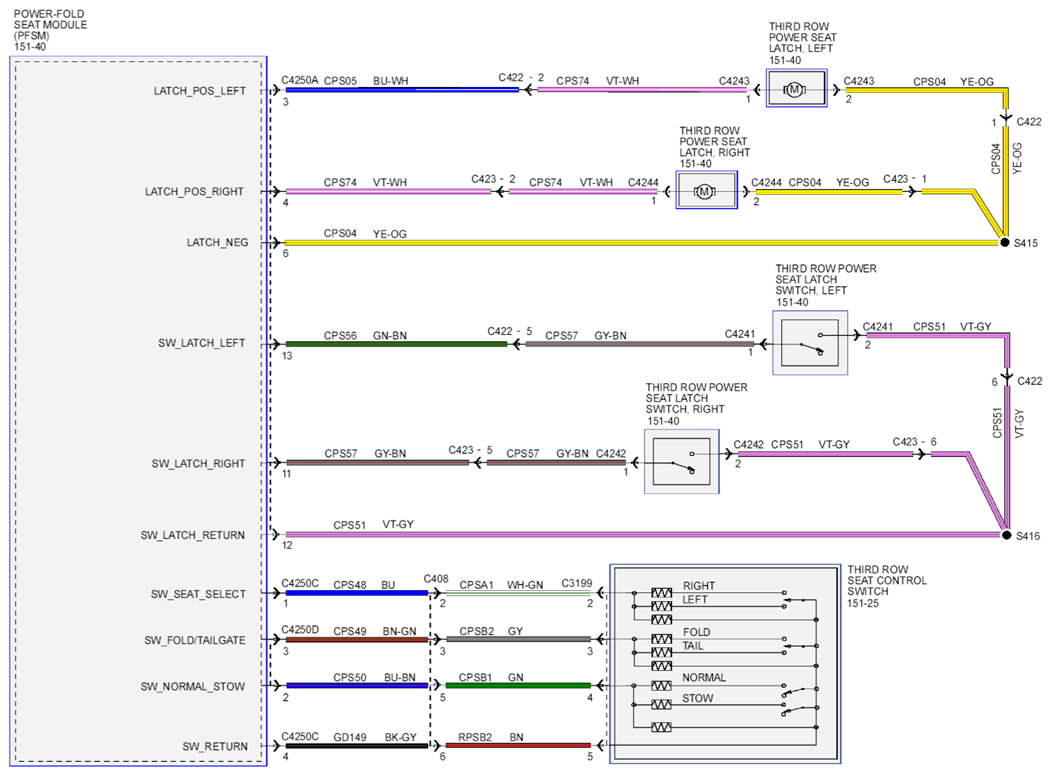

Fig 2: Power Seats Circuit Diagram (With Third Row Folding Seats) (2 Of 3)
G07895503Courtesy of FORD MOTOR CO.

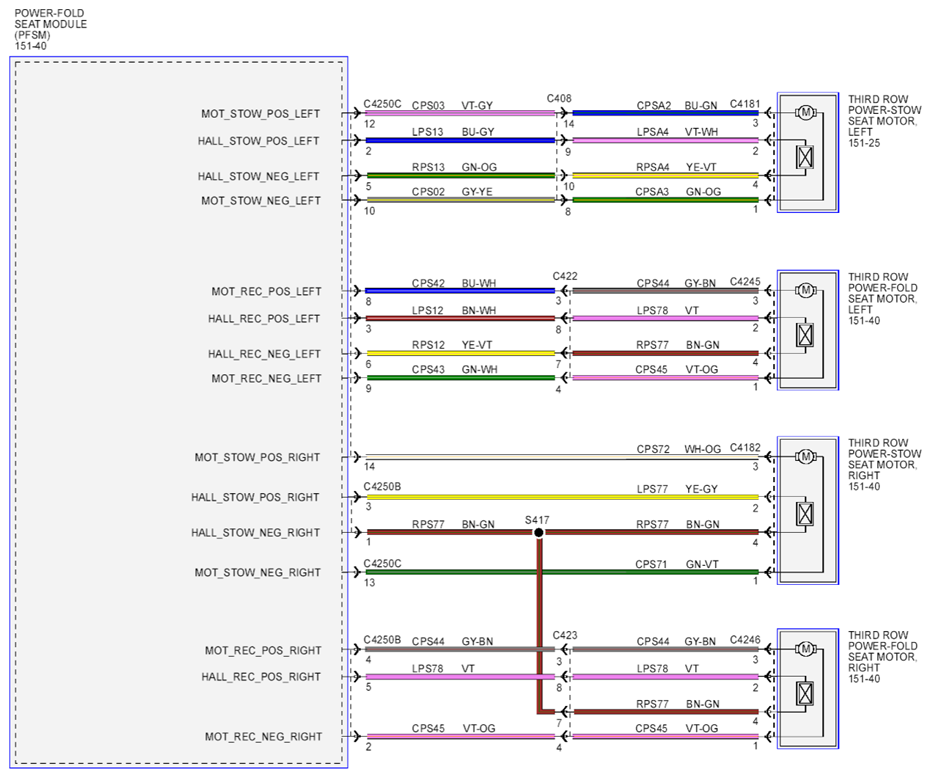

Fig 3: Power Seats Circuit Diagram (With Third Row Folding Seats) (3 Of 3)
G07895504Courtesy of FORD MOTOR CO.
