With Second Row Folding Seats

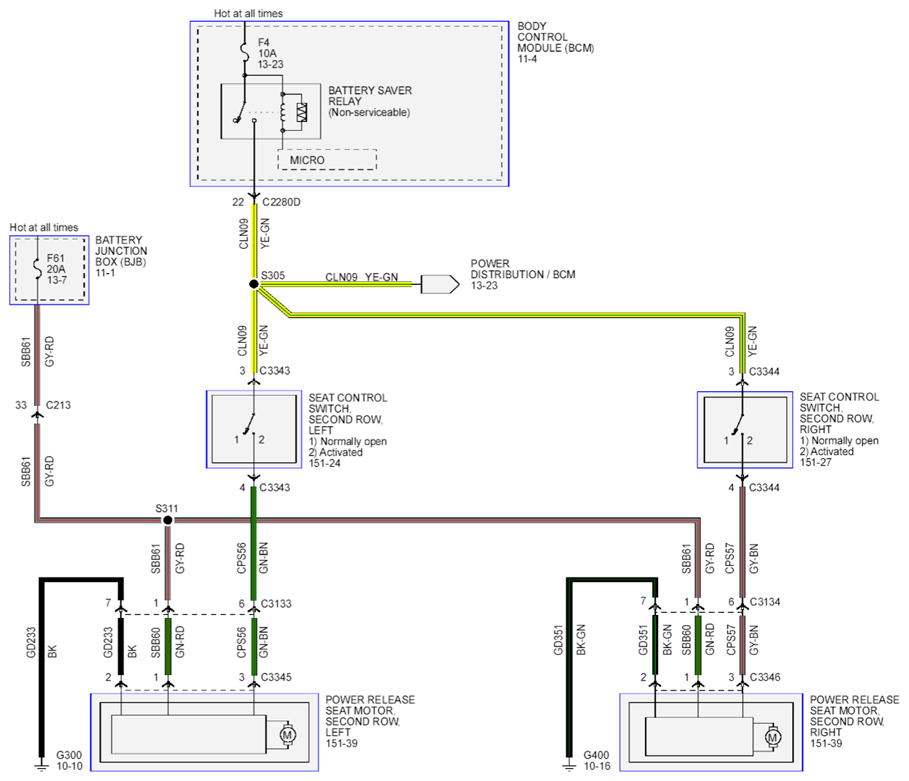

Fig 1: Power Seats Circuit Diagram (With Second Row Folding Seats)

G07895501

Courtesy of FORD MOTOR CO.
