Power Distribution_BCM
>>
F9, F23, F27, F43, F44, F46
F9, F23, F27, F43, F44, F46

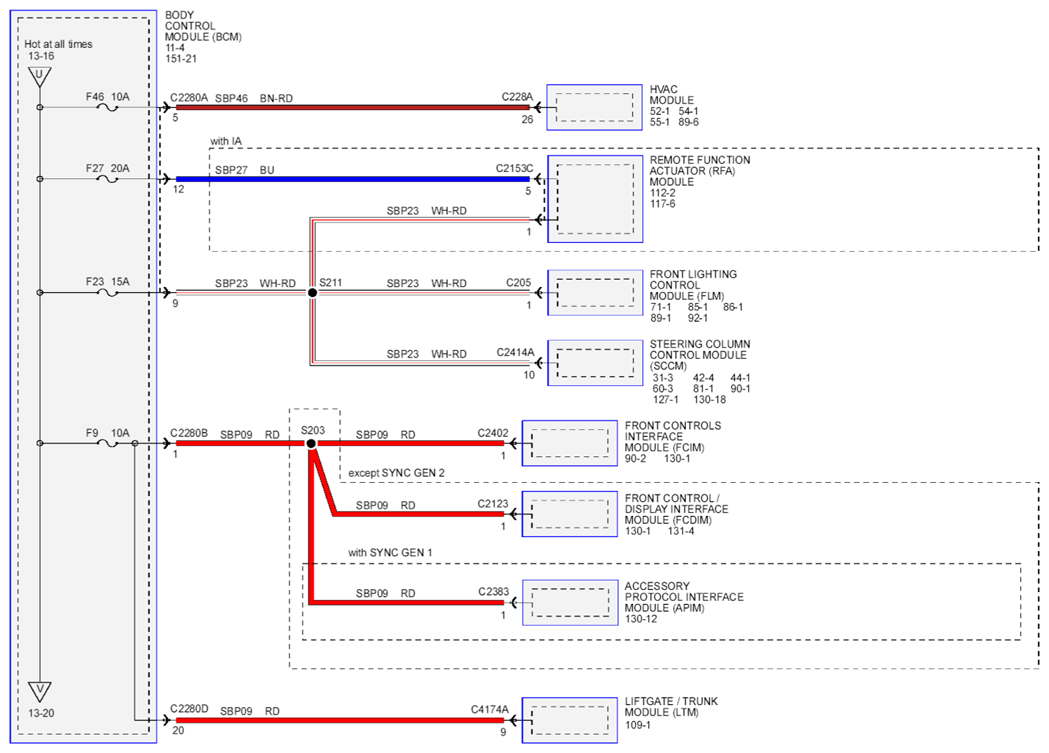

Fig 1: Power Distribution BCM Circuit Diagram (F9, F23, F27, F43, F44, F46)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
