F87, F89, F90

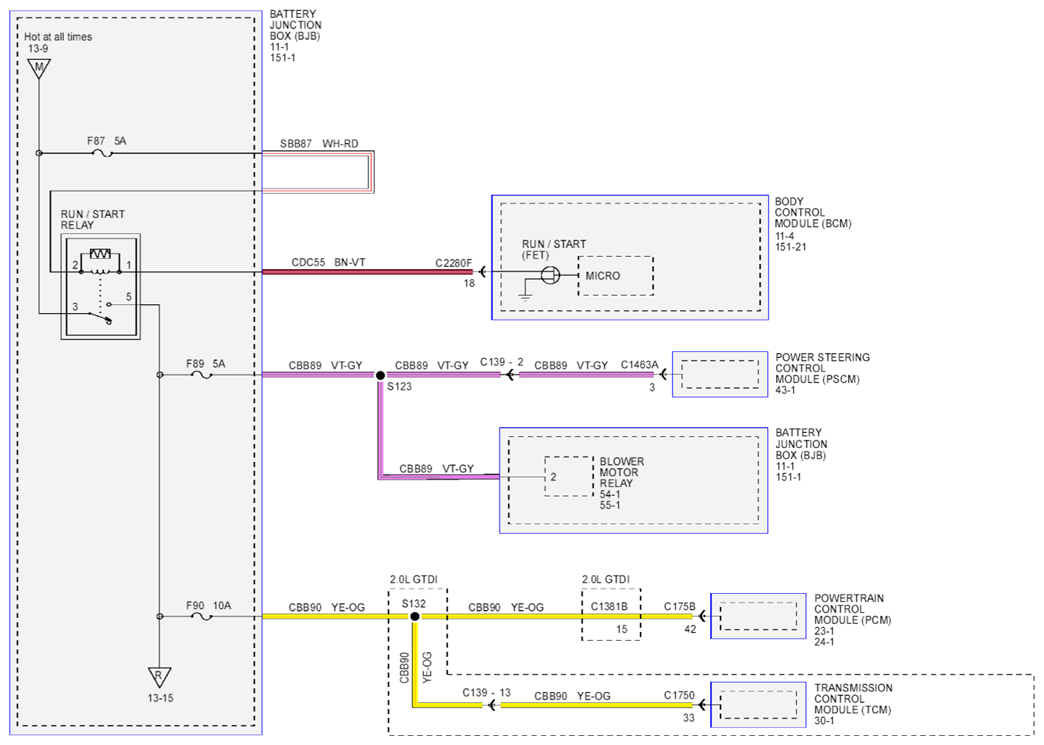

Fig 1: Power Distribution BCM Circuit Diagram (F87, F89, F90)

G07895304

Courtesy of FORD MOTOR CO.
