Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Distribution_BCM
>>
F67 2.0L GTDI
F67 2.0L GTDI

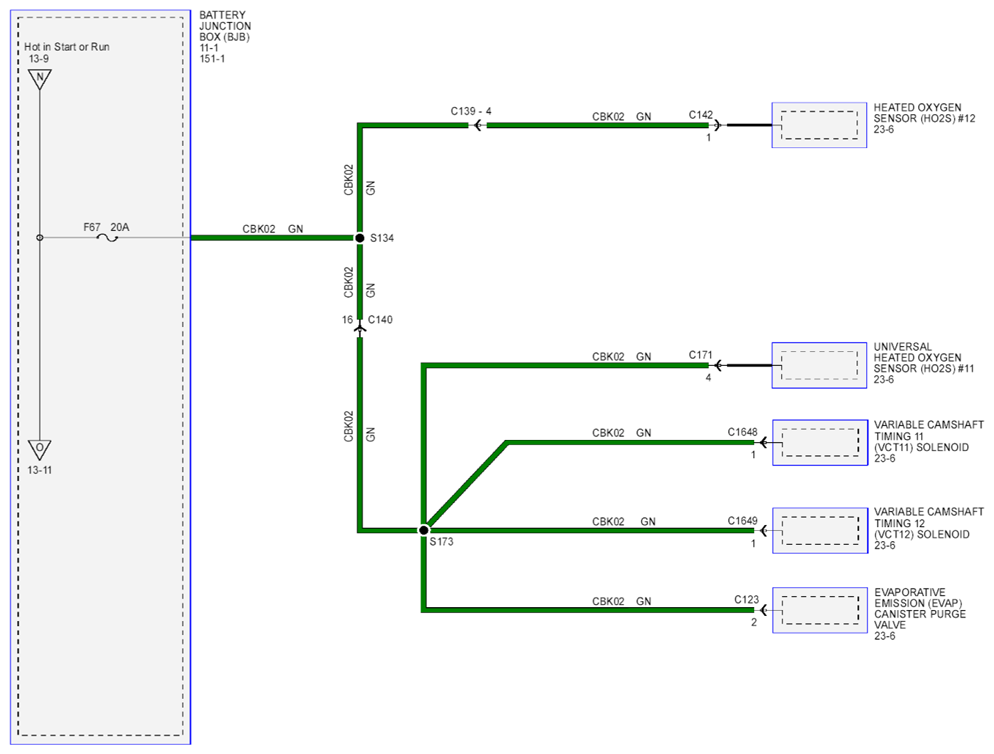

Fig 1: Power Distribution BCM Circuit Diagram - 2.0L GTDI (F67)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
