F45 Without IA

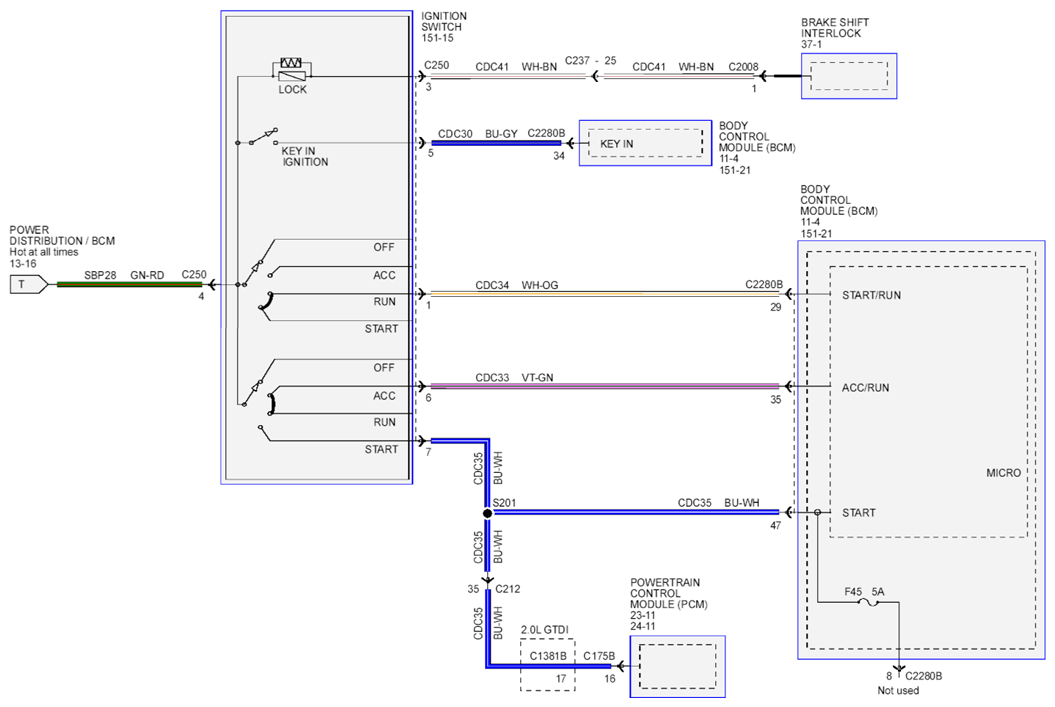

Fig 1: Power Distribution BCM Circuit Diagram (F45 Without IA)

G07895307

Courtesy of FORD MOTOR CO.
