Power Distribution_BCM
>>
F43, F56, F57, F59, F60, F61
F43, F56, F57, F59, F60, F61

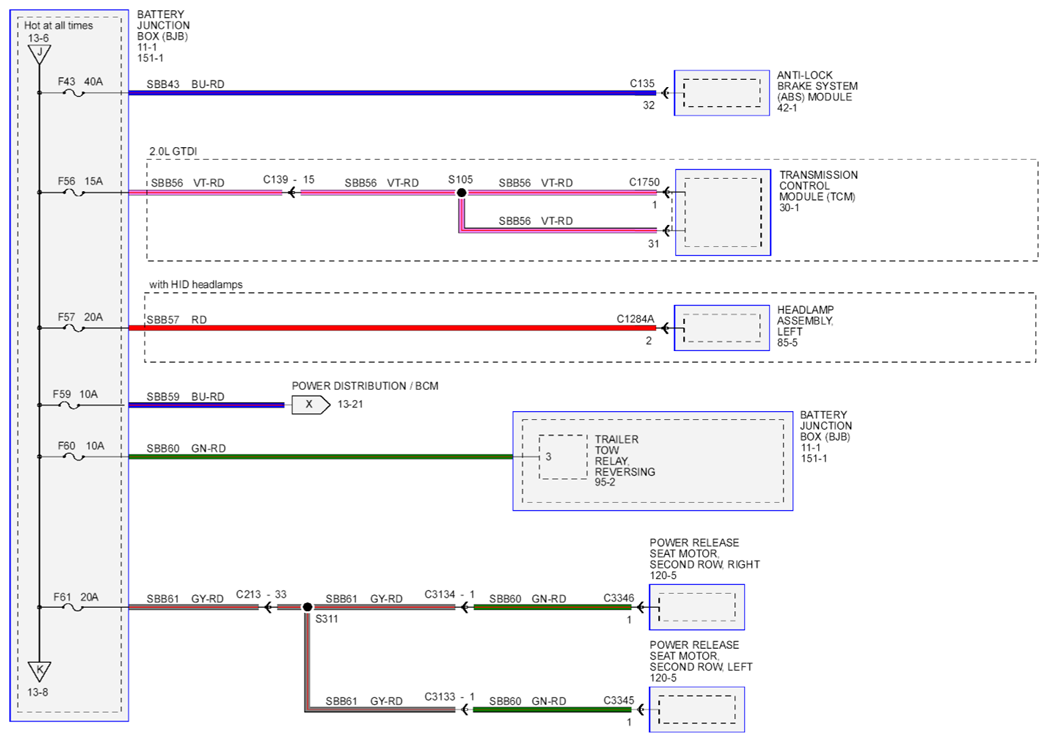

Fig 1: Power Distribution BCM Circuit Diagram (F43, F56, F57, F59, F60, F61)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
