F1, F2, F3, F5, F6, F7, F8, F21, F26

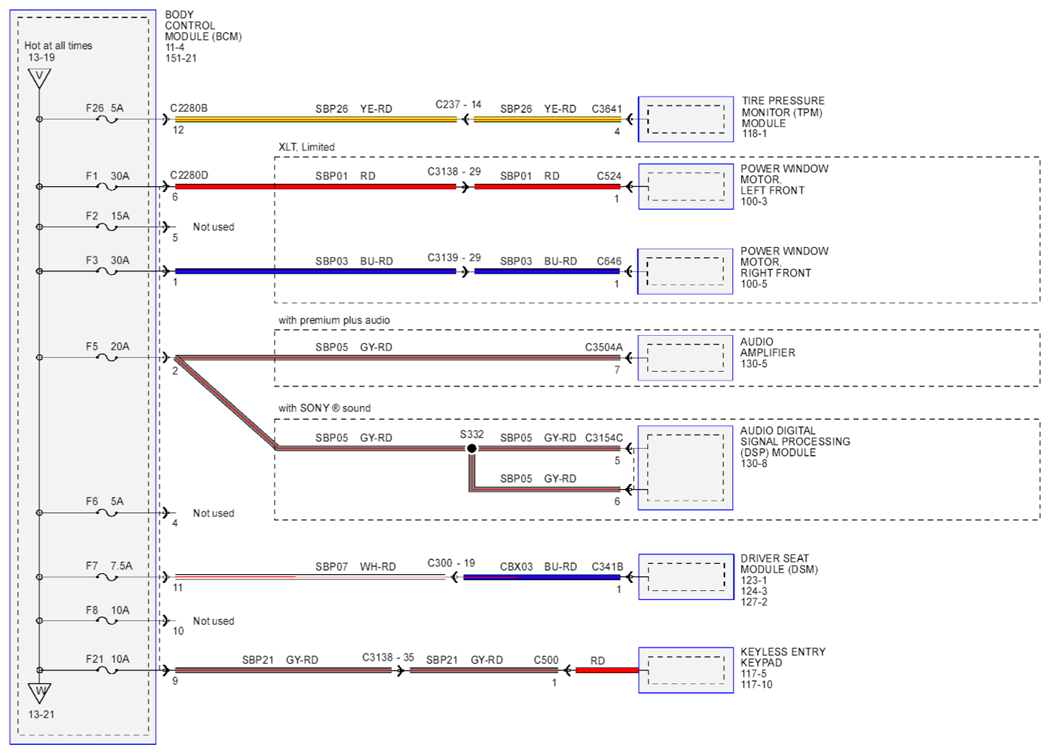

Fig 1: Power Distribution BCM Circuit Diagram (F1, F2, F3, F5, F6, F7, F8, F21, F26)

G07895310

Courtesy of FORD MOTOR CO.
