Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Parking Aid
>>
With Parking Assist
With Parking Assist

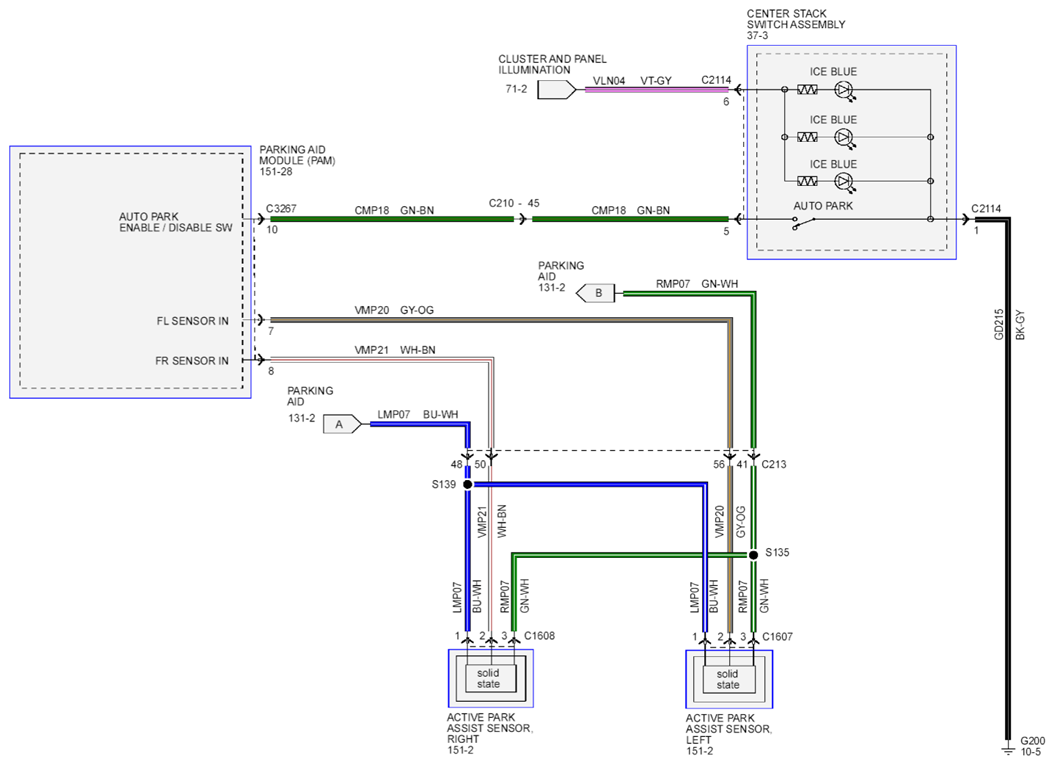

Fig 1: Parking Aid Circuit Diagram (With Parking Assist)
