Interior Lamps: Notes

Fig 1: Interior Lamps Circuit Diagram (1 Of 5)
G07895441Courtesy of FORD MOTOR CO.

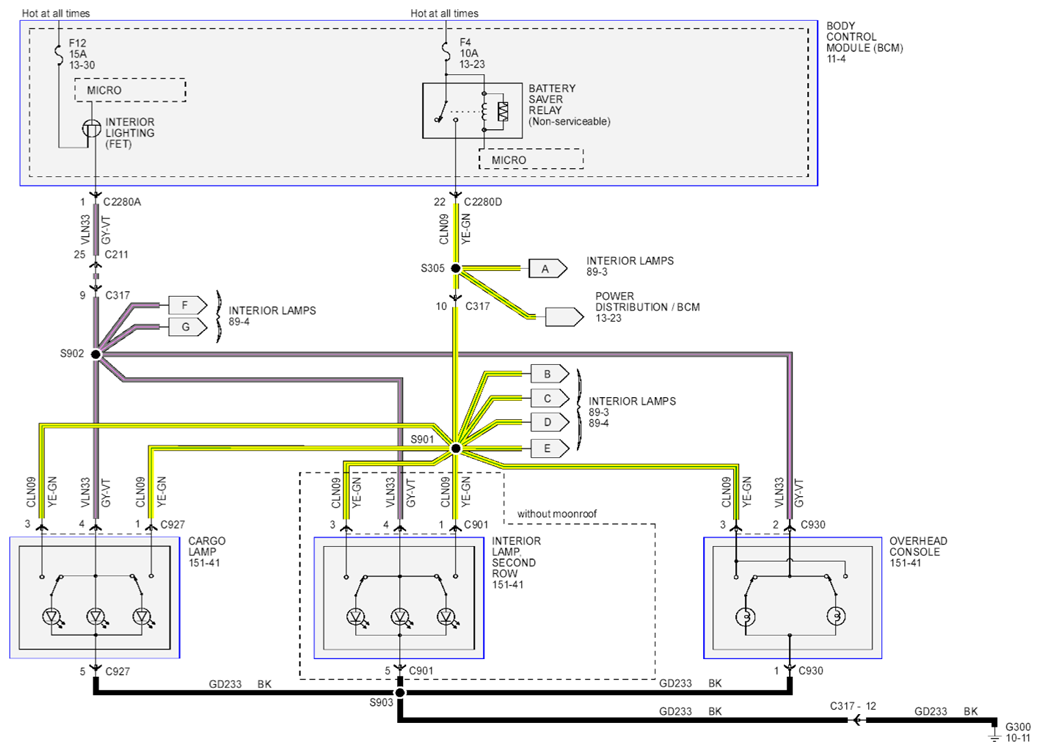

Fig 2: Interior Lamps Circuit Diagram (2 Of 5)
G07895442Courtesy of FORD MOTOR CO.

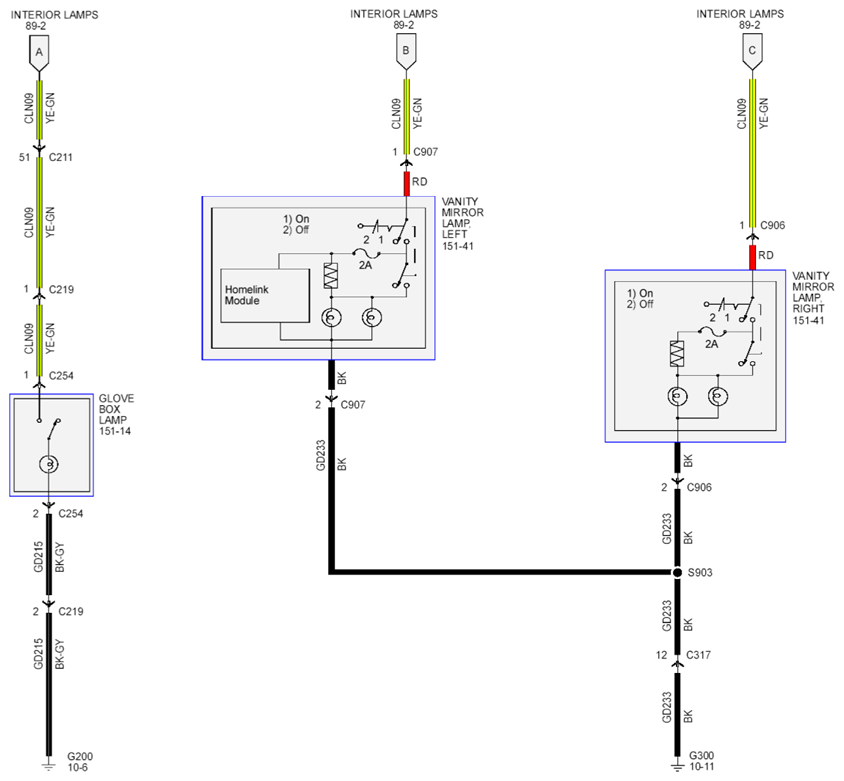

Fig 3: Interior Lamps Circuit Diagram (3 Of 5)
G07895443Courtesy of FORD MOTOR CO.

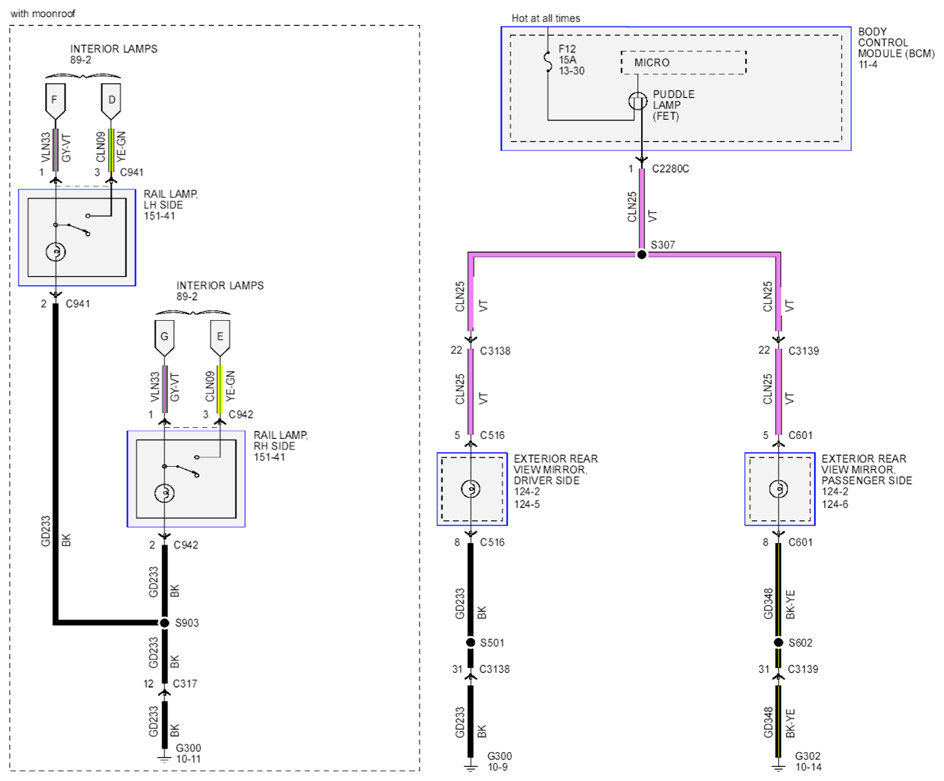

Fig 4: Interior Lamps Circuit Diagram (4 Of 5)
G07895444Courtesy of FORD MOTOR CO.

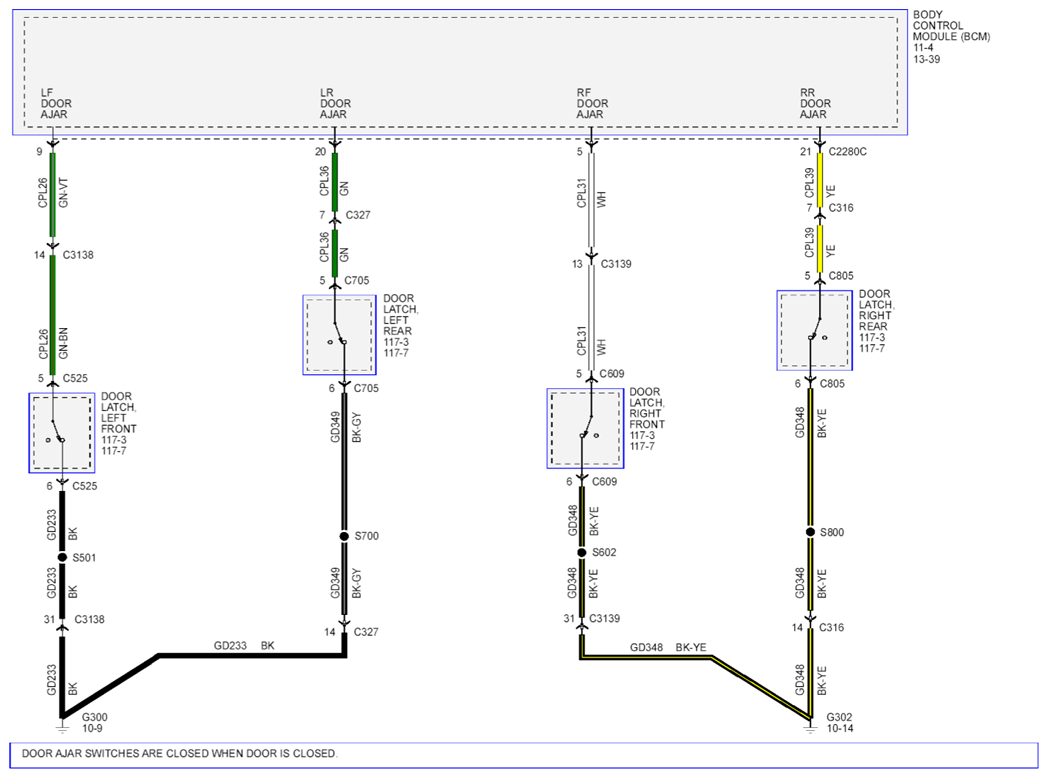

Fig 5: Interior Lamps Circuit Diagram (5 Of 5)
G07895445Courtesy of FORD MOTOR CO.
