Horn_Cigar Lighter: Notes

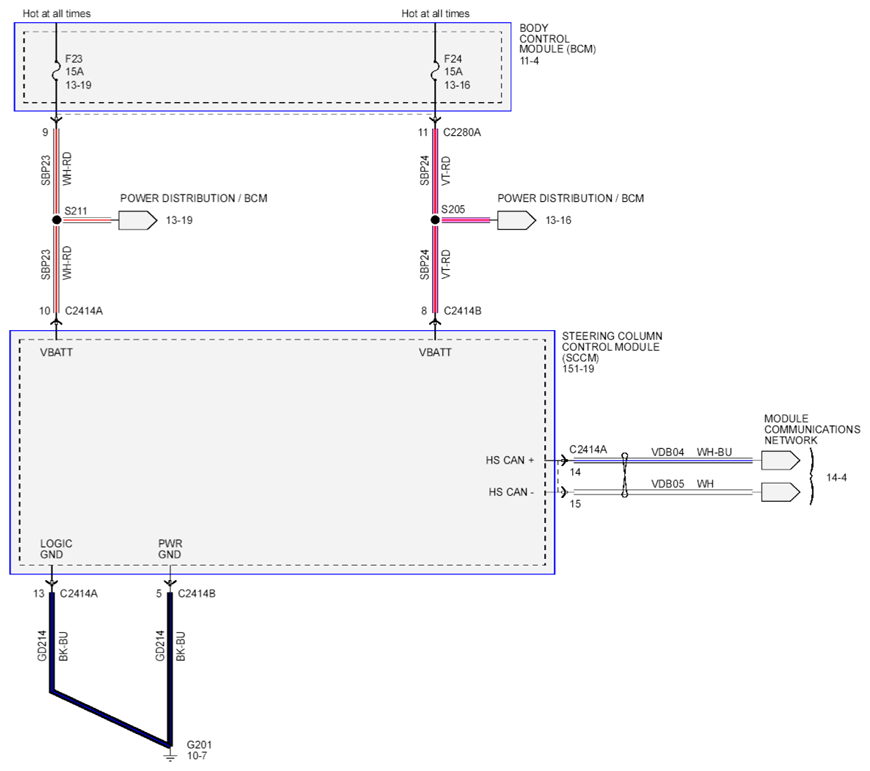

Fig 1: Horn Cigar Lighter Circuit Diagram (View 1 Of 4)
G07895390Courtesy of FORD MOTOR CO.

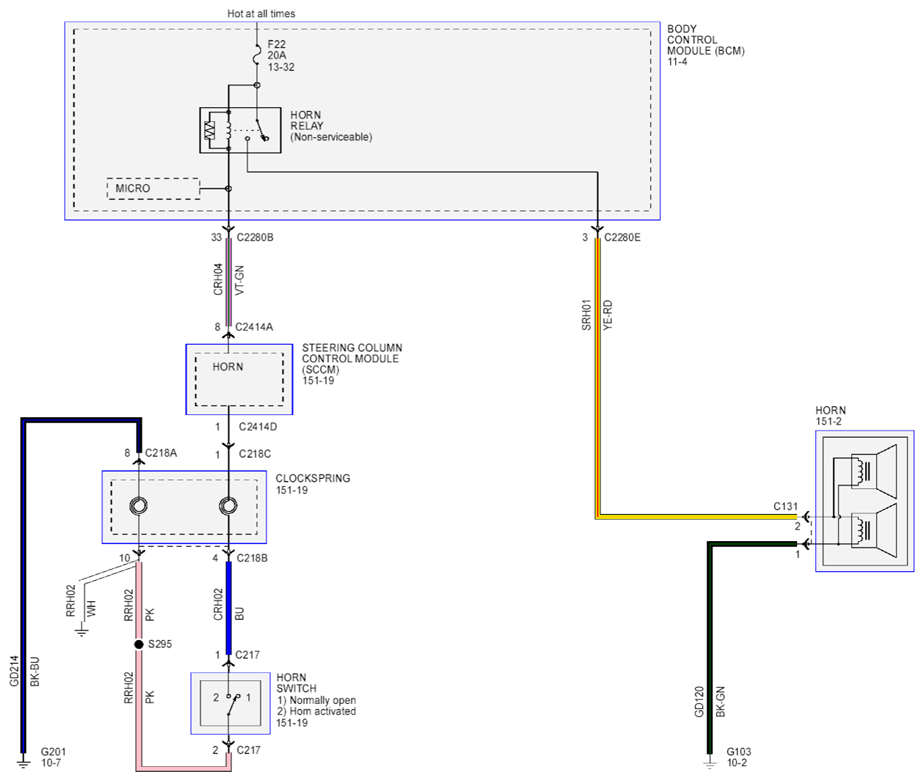

Fig 2: Horn Cigar Lighter Circuit Diagram (View 2 Of 4)
G07895391Courtesy of FORD MOTOR CO.

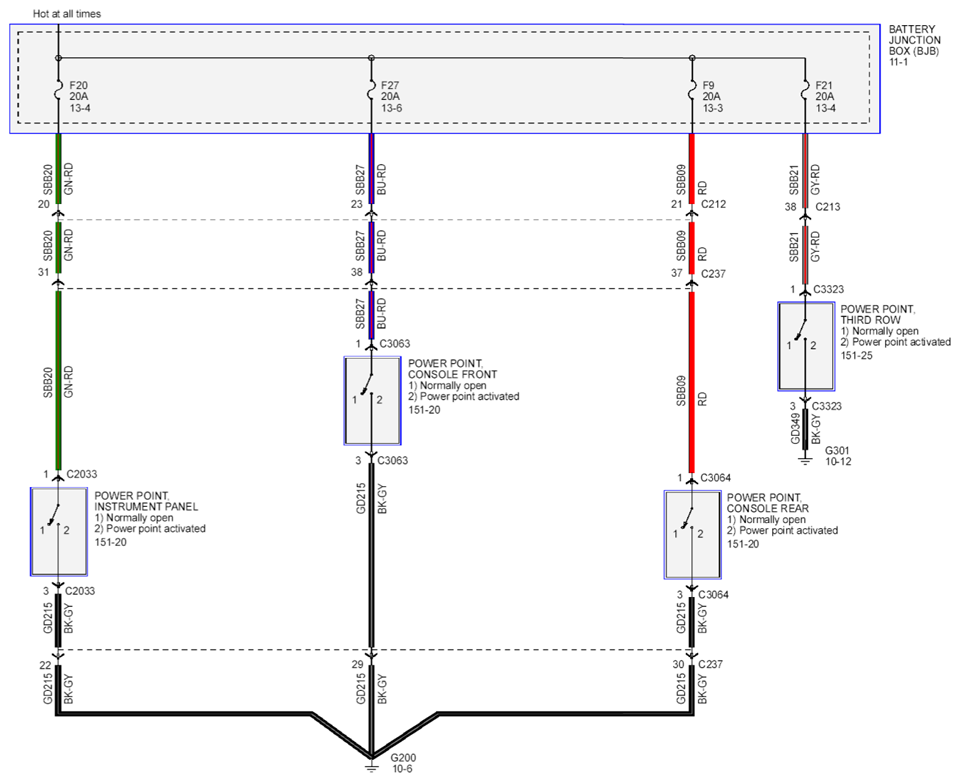

Fig 3: Horn Cigar Lighter Circuit Diagram (View 3 Of 4)
G07895392Courtesy of FORD MOTOR CO.
