Heated Window: Notes

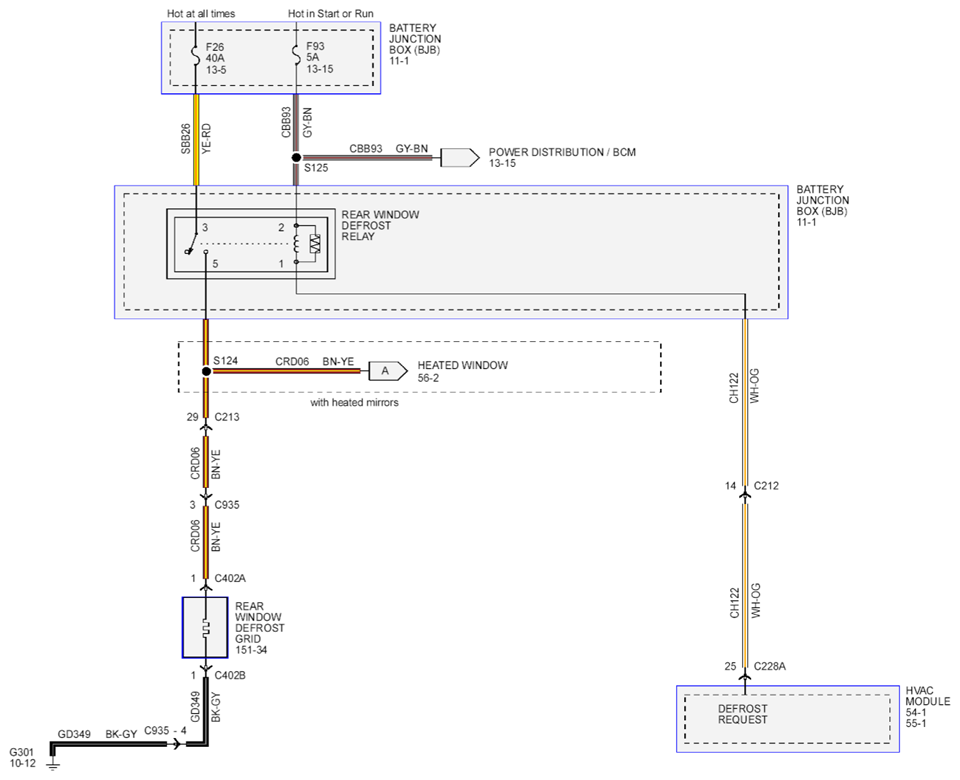

Fig 1: Heated Window Circuit Diagram (View 1 Of 2)

G07895418

Courtesy of FORD MOTOR CO.
