Cruise Control
>>
Without Adaptive Cruise
Without Adaptive Cruise

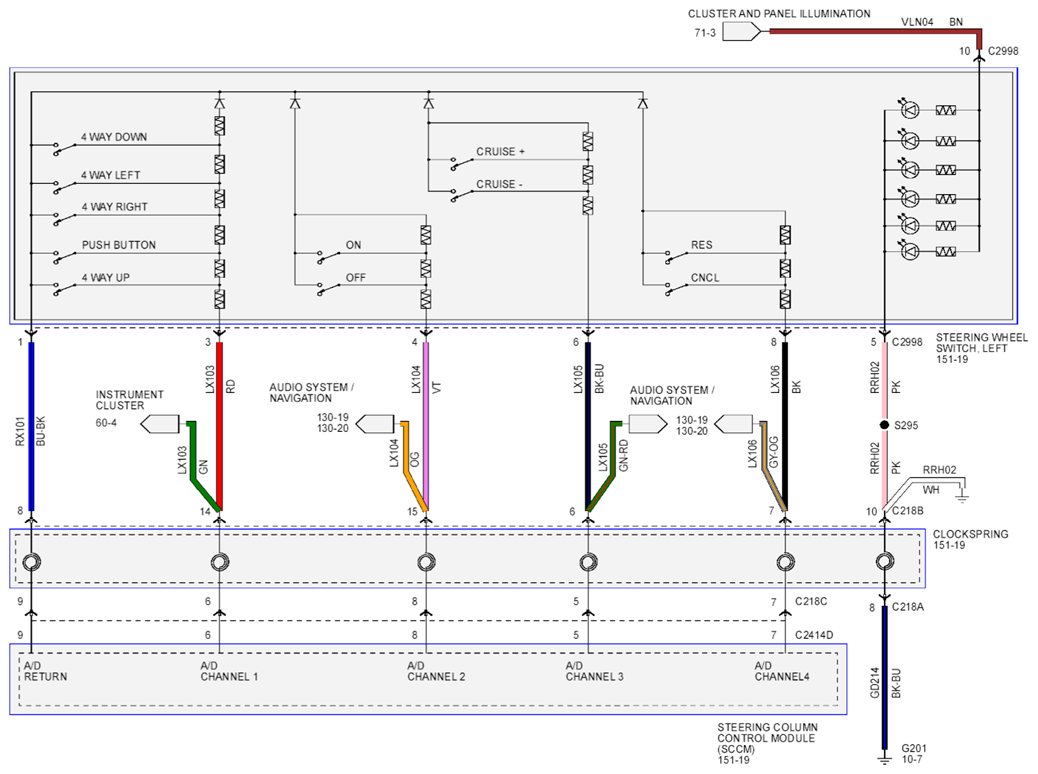

Fig 1: Cruise Control Circuit Diagram (Without Adaptive Cruise) (View 4 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
