With Adaptive Cruise

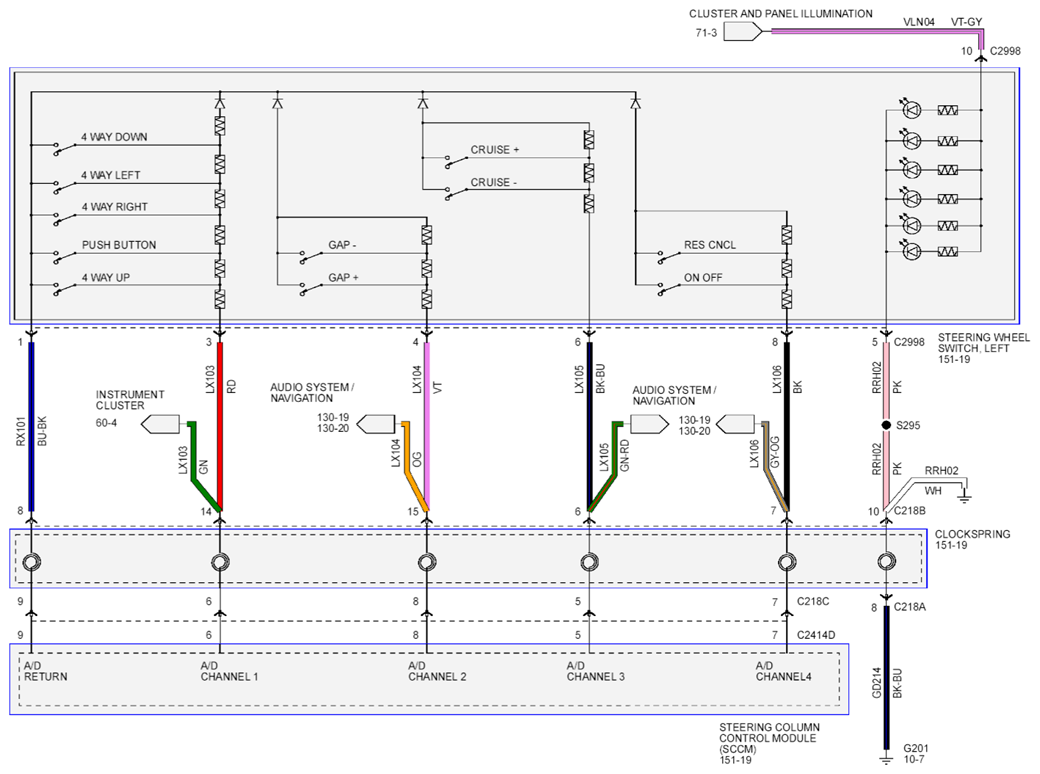

Fig 1: Cruise Control Circuit Diagram (With Adaptive Cruise) (View 5 Of 6)
G07895377Courtesy of FORD MOTOR CO.

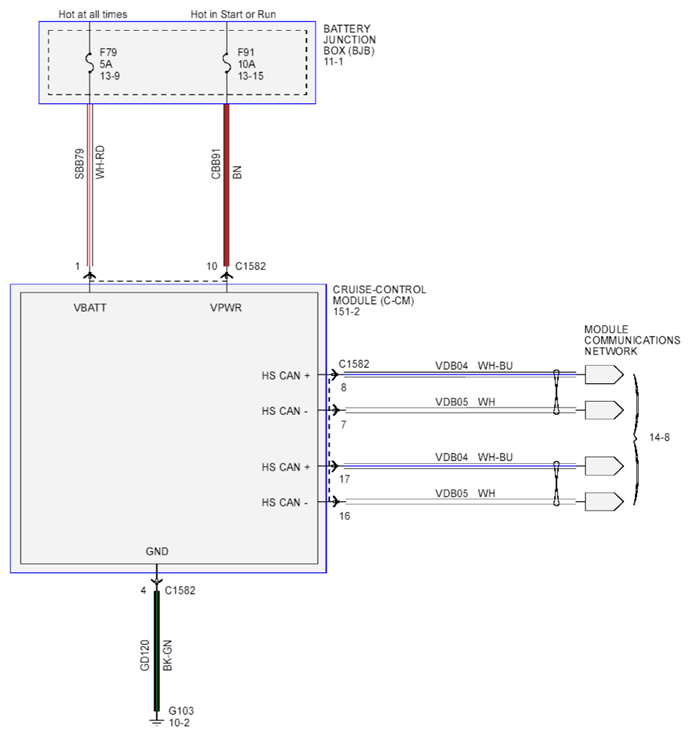

Fig 2: Cruise Control Circuit Diagram (With Adaptive Cruise) (View 6 Of 6)
G07895378Courtesy of FORD MOTOR CO.
