Explorer Base, 3.5 8, AWD, 6F50
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Cooling Fan
Cooling Fan

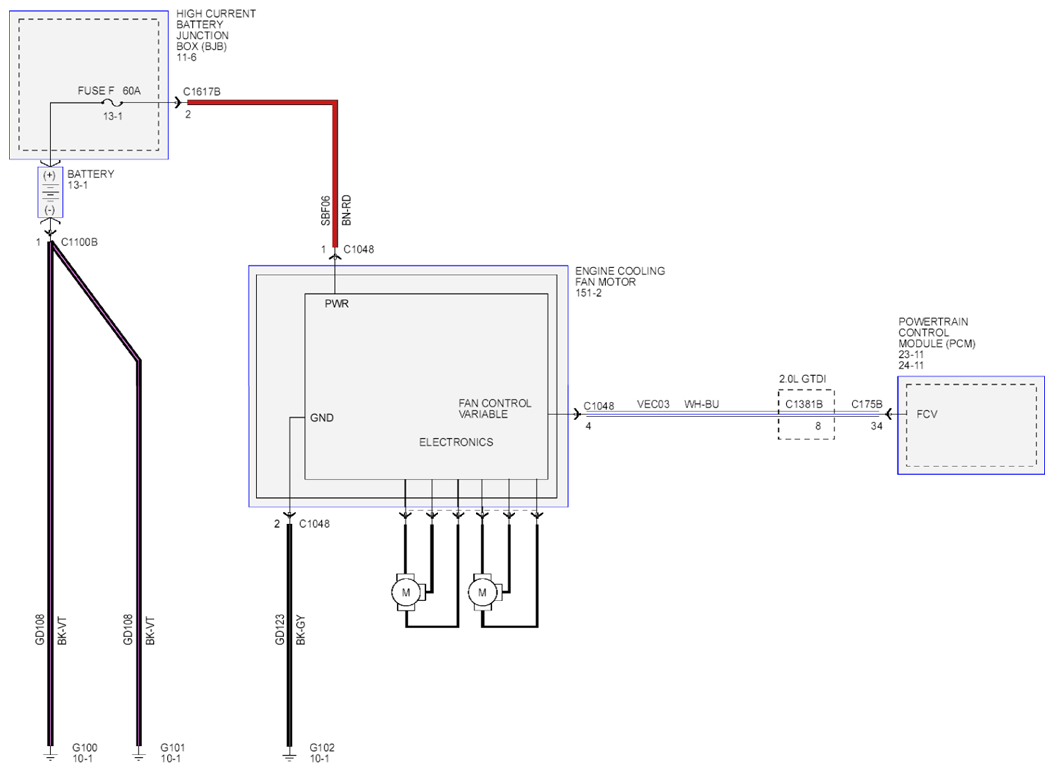

Fig 1: Cooling Fan Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
