With Heated Seats

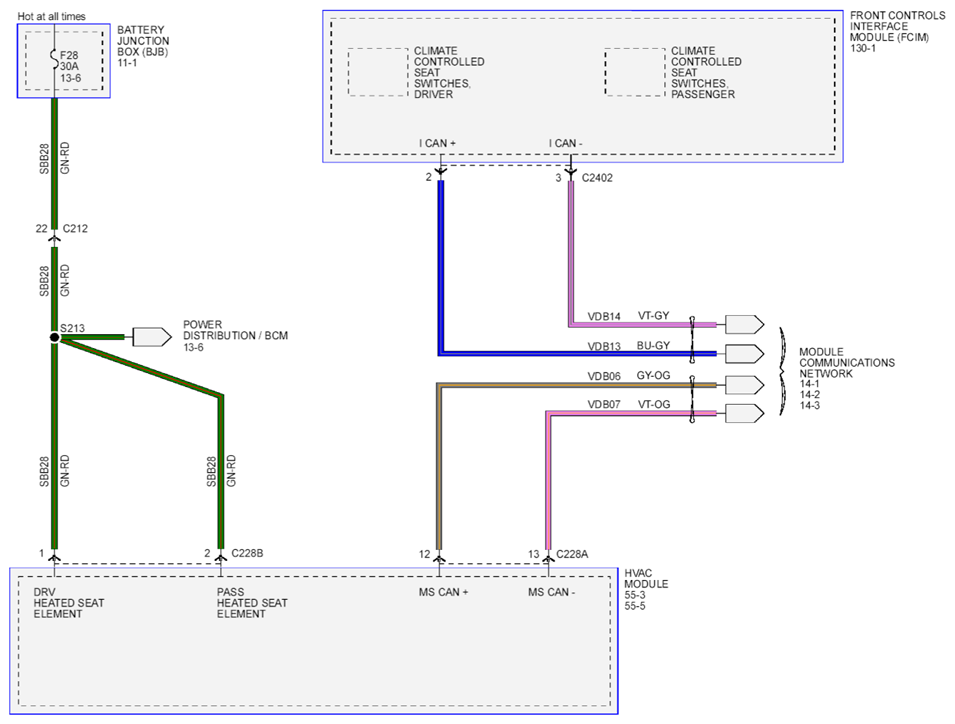

Fig 1: Climate Controlled Seats Circuit Diagram (With Heated Seats) (1 Of 3)
G07895491Courtesy of FORD MOTOR CO.

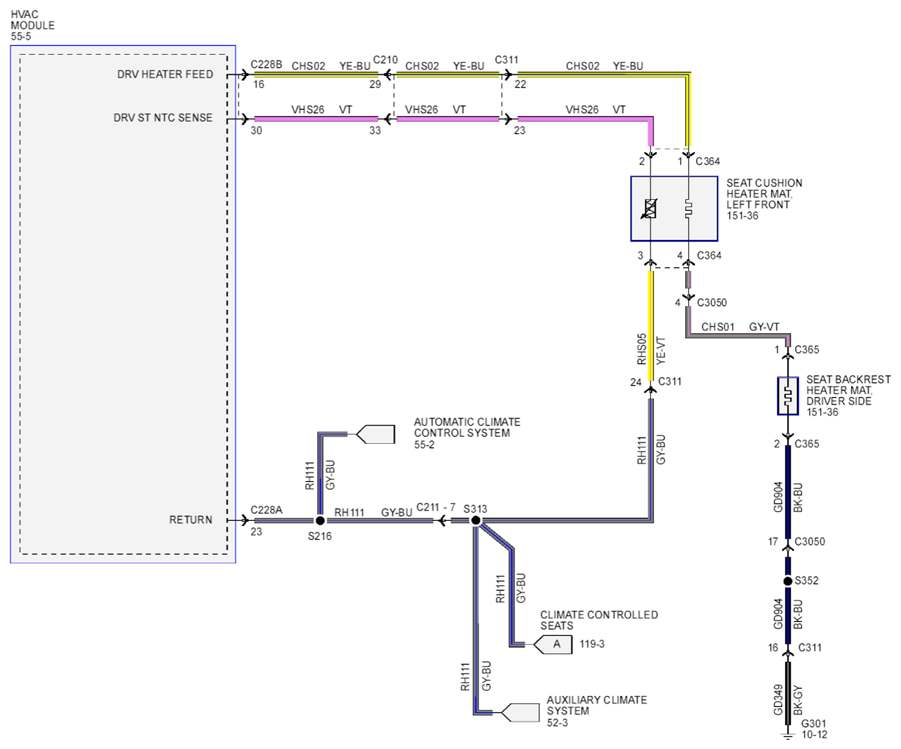

Fig 2: Climate Controlled Seats Circuit Diagram (With Heated Seats) (2 Of 3)
G07895492Courtesy of FORD MOTOR CO.

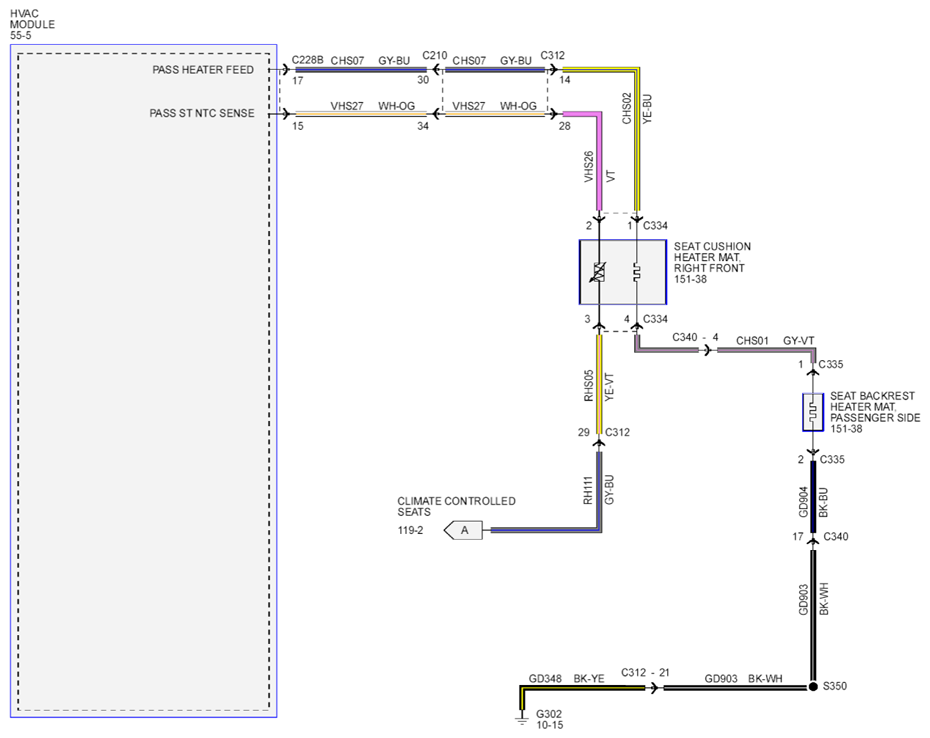

Fig 3: Climate Controlled Seats Circuit Diagram (With Heated Seats) (3 Of 3)
G07895493Courtesy of FORD MOTOR CO.
