G104, G105, G106 3.5L TIVCT

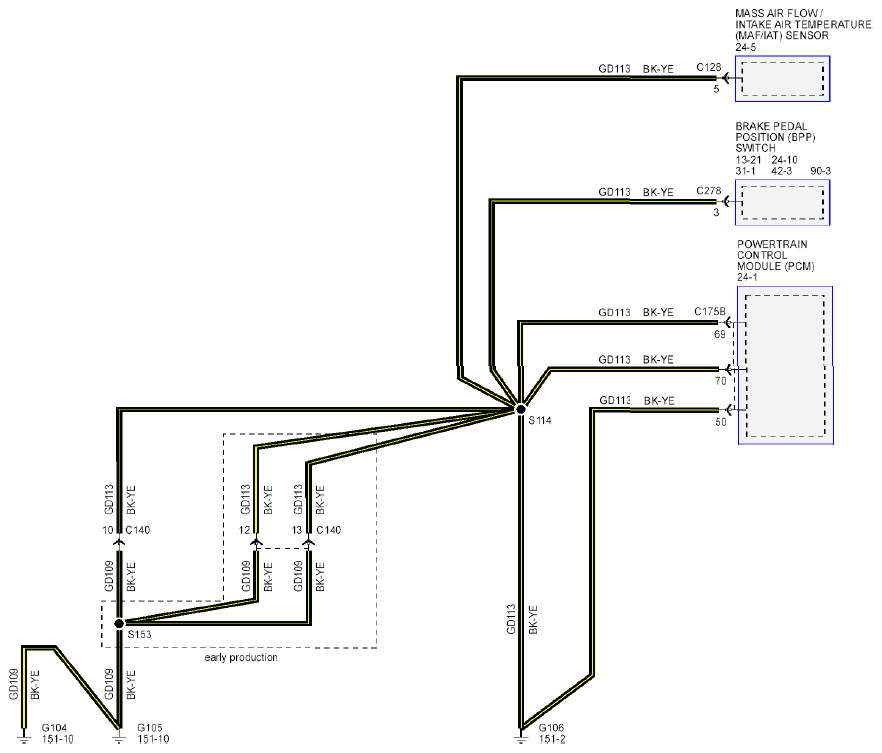

Fig 1: Grounds Circuit Diagram (G104, G105, G106) (3.5L TIVCT)

G07895273

Courtesy of FORD MOTOR CO.
