Instrument Panel Upper Section: Removal

Remove the front floor console. REFER to Console - Front, Floor .
Remove the LH and RH scuff plate trim panels. REFER to SCUFF PLATE TRIM PANEL .
Position aside the LH and RH door weather strips.
Remove the LH and RH A-pillar trim panels. REFER to A-PILLAR TRIM PANEL .
NOTE: LH side shown in illustration, RH side similar.

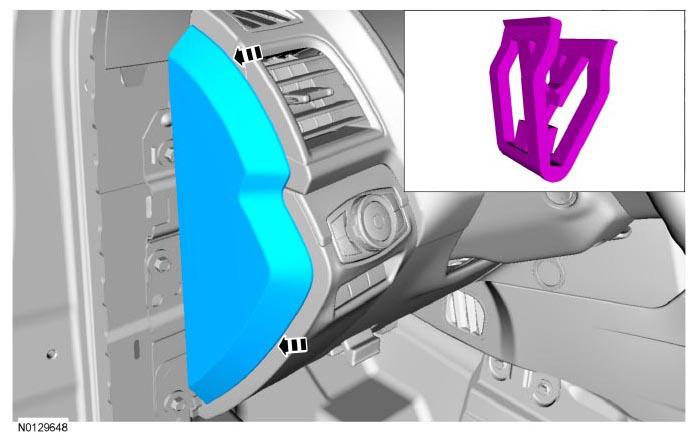

Remove the LH and RH instrument panel side trim panels.

Fig 1: Removing Instrument Side Trim Panel
Courtesy of FORD MOTOR CO.
NOTE: LH side shown in illustration, RH side similar.

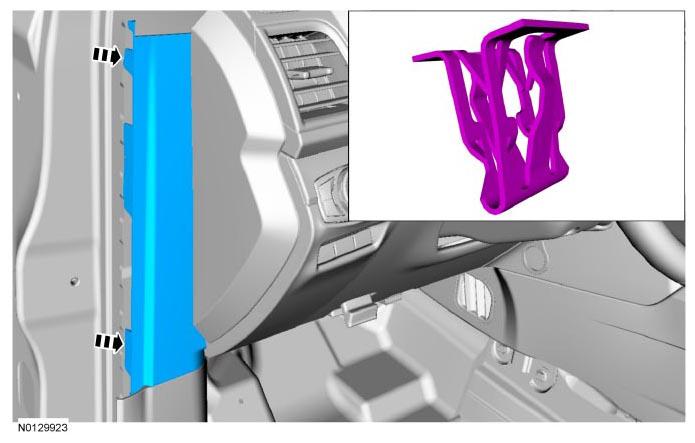

Remove the LH and RH cowl side trim covers.

Fig 2: Removing Cowl Side Trim Cover
Courtesy of FORD MOTOR CO.

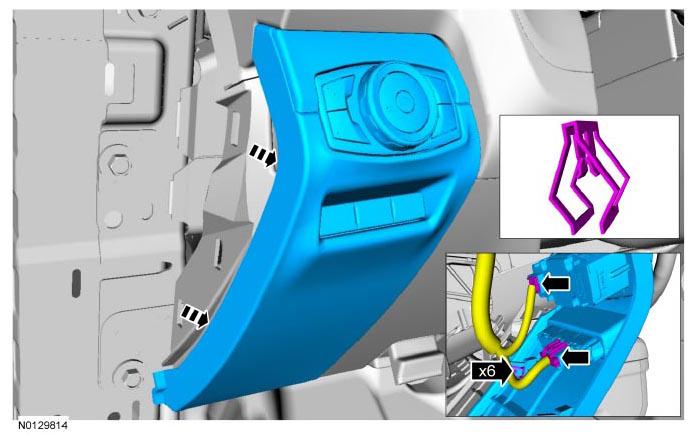

Remove the lower LH instrument panel trim panel.
- Disconnect the 2 electrical connectors.
Fig 3: Removing Lower Instrument Trim Panel
Courtesy of FORD MOTOR CO.
Remove the IPC. REFER to INSTRUMENT PANEL CLUSTER (IPC) .

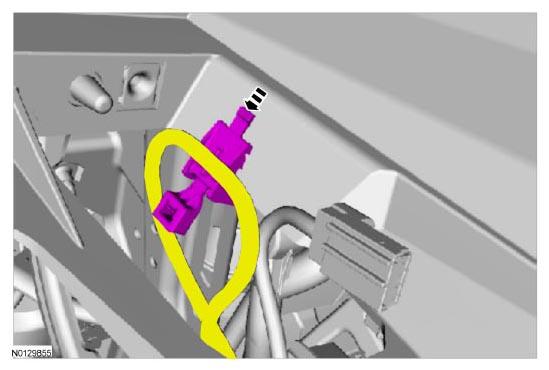

Unclip the in-car tempreature sensor harness from the instrument panel upper section.

Fig 4: Removing In-Car Tempreature Sensor
Courtesy of FORD MOTOR CO.
Remove the GPSM. REFER to GLOBAL POSITIONING SYSTEM MODULE (GPSM) .
Remove the steering column. REFER to STEERING COLUMN .
Remove the hood release handle bolt and remove the hood release handle.
- To install, tighten to 5 Nm (44 lb-in).

  Fig 5: Locating Hood Release Handle Bolt
  Courtesy of FORD MOTOR CO.
Remove the glove compartment door. REFER to Glove Compartment .
Remove the glove compartment trim panel.

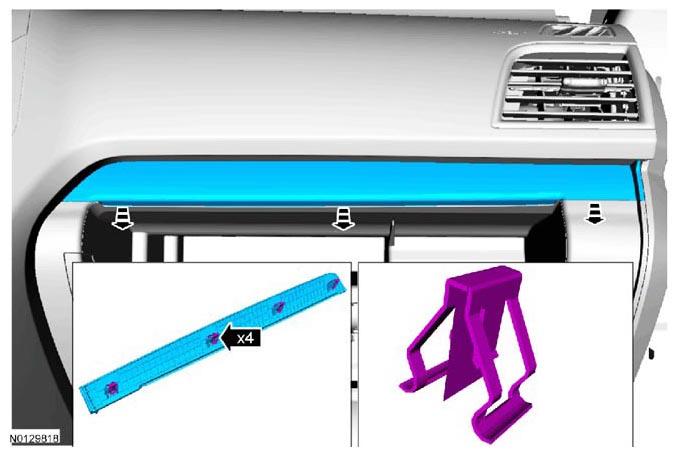

Fig 6: Removing Glove Compartment Trim Panel
Courtesy of FORD MOTOR CO.

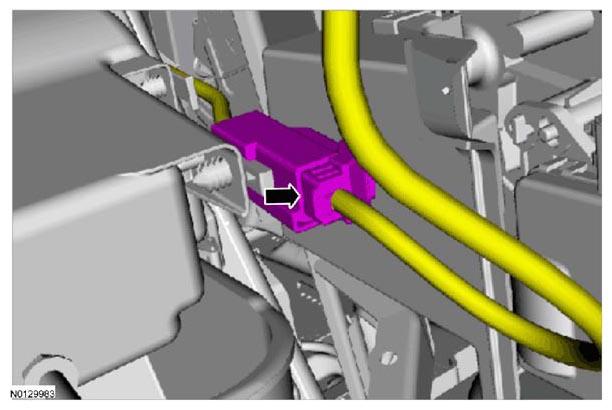

Disconnect the glove compartment electrical connector.

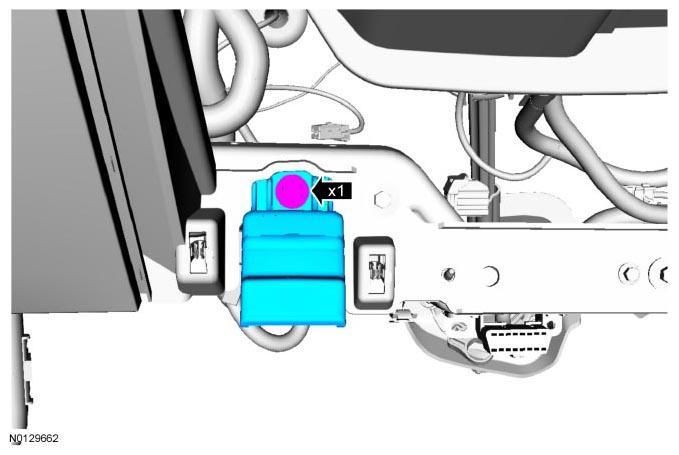

Fig 7: Locating Glove Compartment Electrical Connector
Courtesy of FORD MOTOR CO.

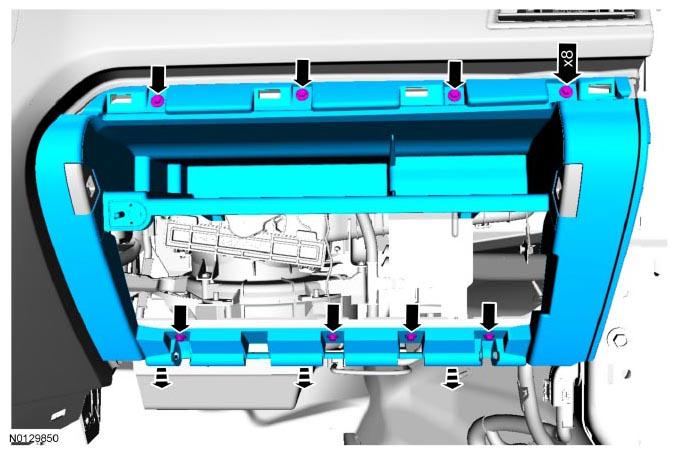

Remove the 8 screws and remove the glove compartment close out.
- To install, tighten to 3 Nm (27 lb-in).

  Fig 8: Removing Glove Compartment
  Courtesy of FORD MOTOR CO.
NOTE: Apply threadlock to the passenger side air bag to in-vehicle cross beam bolts prior to installation.

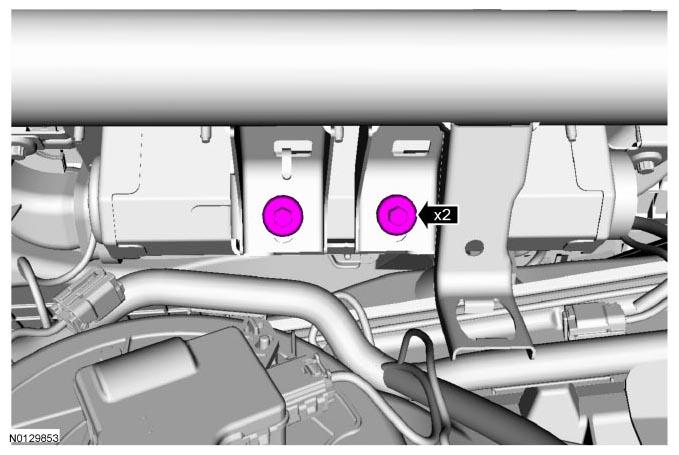

Remove the 2 passenger side air bag to in-vehicle cross beam bolts.
- To install, tighten to 9 Nm (80 lb-in).

  Fig 9: Locating In-Vehicle Cross Beam Bolts
  Courtesy of FORD MOTOR CO.
NOTE: LH side shown in illustration RH similar.

Disconnect the RH and LH passengers side air bag electrical connectors.

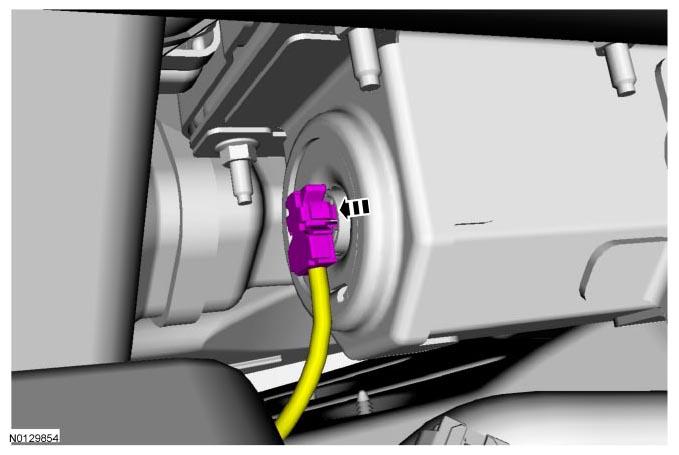

Fig 10: Removing Passenger Side Air Bag Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the ACM. REFER to AUDIO CONTROL MODULE (ACM) . Remove the FDIM. REFER to FRONT DISPLAY INTERFACE MODULE (FDIM) . If equipped, remove the instrument panel speaker. REFER to SPEAKER -- INSTRUMENT PANEL .
Disconnect the ignition switch electrical connector or the push button start switch electrical connector.

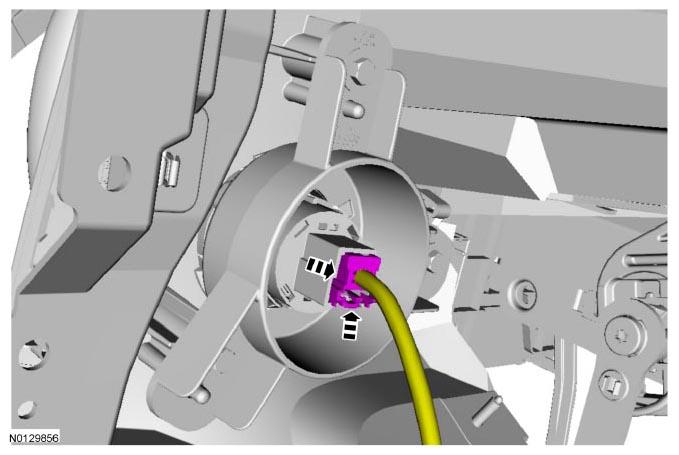

Fig 11: Removing Push Button Start Switch Electrical Connector
Courtesy of FORD MOTOR CO.
If equipped, remove the instrument panel speaker and grille as an assembly.
- Disconnect the electrical connector.
Remove the defroster grille.
- Disconnect the electrical connector.

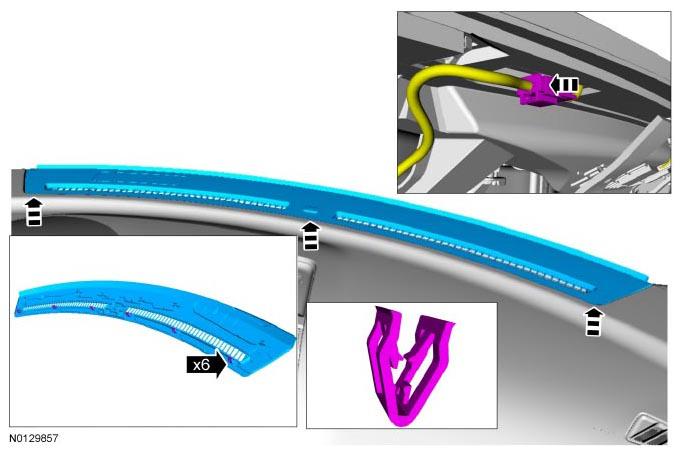

Fig 12: Removing Defroster Grille
Courtesy of FORD MOTOR CO.

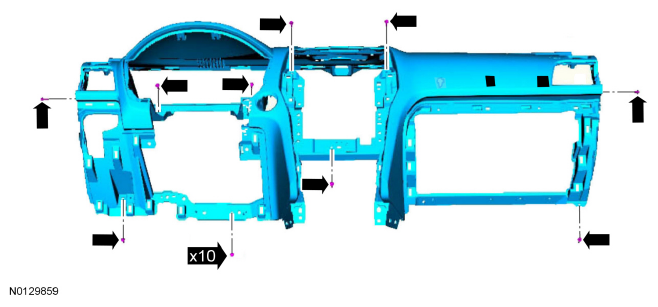

Remove the 10 instrument panel upper section screws.
- To install, tighten to 3 Nm (27 lb-in).

  Fig 13: Locating Instrument Panel Upper Section Screws
  Courtesy of FORD MOTOR CO.
Gently pull the RH side of the instrument panel upper section rearward and detach the defroster grille electrical harness push pin from the HVAC duct.

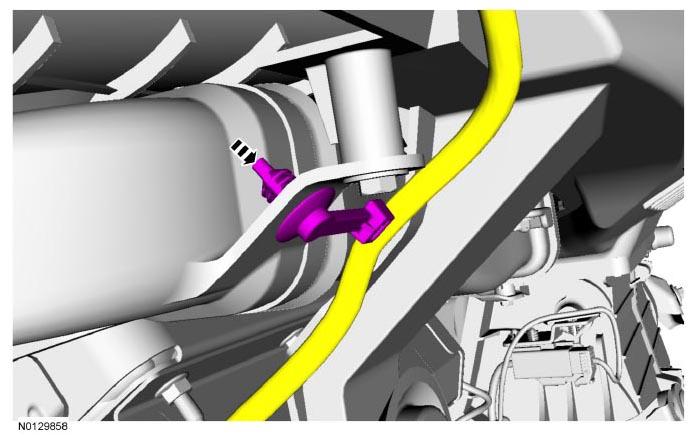

Fig 14: Removing Defroster Grille Electrical Harness Push Pin
Courtesy of FORD MOTOR CO.
NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.

Remove the instrument panel upper section.
