Instrument Cluster Finish Panel: Removal

Position the steering wheel to the full downward position and outward position.

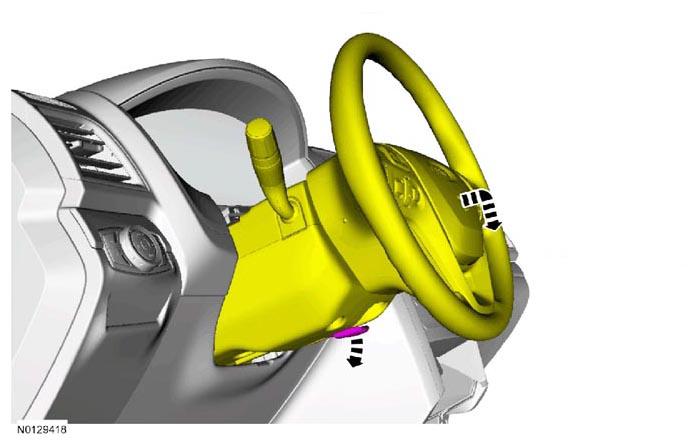

Fig 1: Positioning Steering Wheel
Courtesy of FORD MOTOR CO.
Unclip the gap hider from the upper steering column shroud.

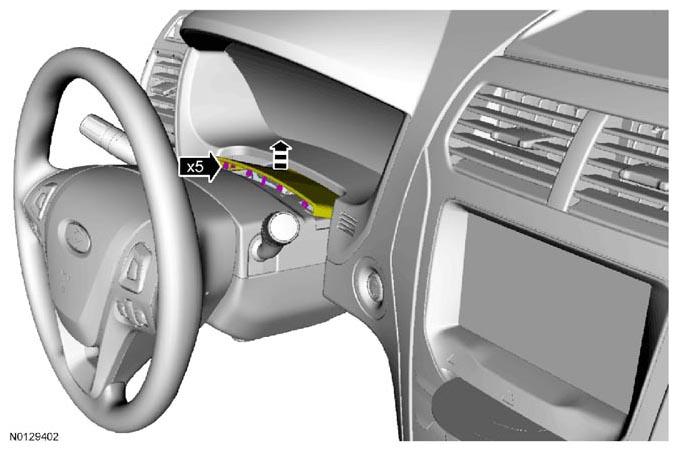

Fig 2: Removing Gap Hider
Courtesy of FORD MOTOR CO.
Release the 4 clips and remove the IPC finish panel.
- Disconnect the electrical connector.

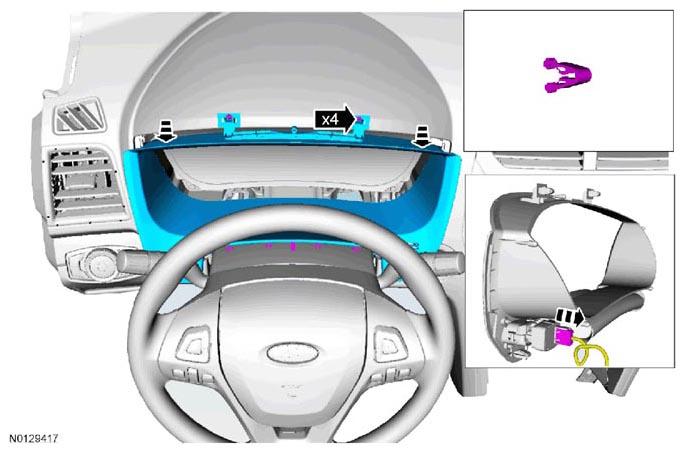

Fig 3: Removing IPC Finish Panel And Electrical Connector
Courtesy of FORD MOTOR CO.
