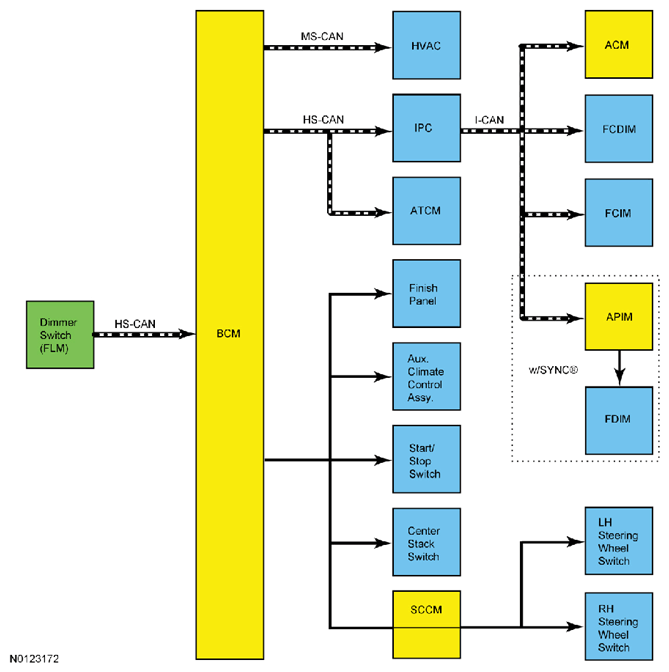

Home >> Ford >> 2012 >> Explorer Base, 3.5 8, AWD, 6F50 >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Cluster Illumination And Panel Illumination >> Description And Operation >> Instrument Cluster and Panel Illumination >> System Operation >> System Diagram
