Battery Cables - 2.0L GTDI: Removal

NOTE: Loosen the nut, do not remove.
1. Torque:
  - 9 Nm (80 lb-in).
2. Torque:
  - 9 Nm (80 lb-in).

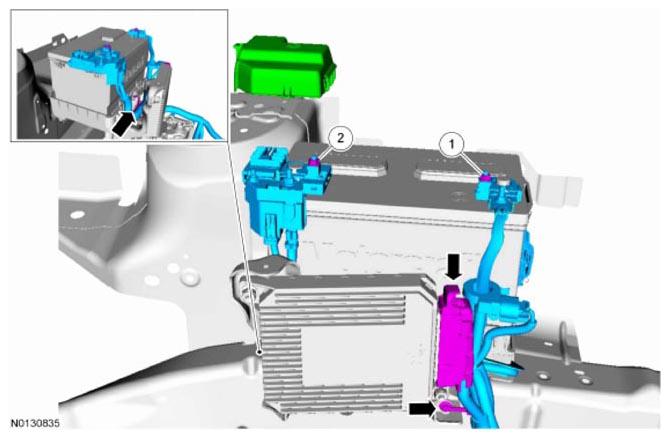

  Fig 1: Locating Battery Cable Nuts And ECM Connector - 2.0L GTDI
  Courtesy of FORD MOTOR CO.
1. Torque:
  - 12 Nm (106 lb-in).
  Fig 2: Locating Body Ground Terminal Stud Nut
  Courtesy of FORD MOTOR CO.
1. Torque:
  - 17 Nm (150 lb-in).
2. Torque:
  - 12 Nm (106 lb-in).
3. Torque:
  - 5 Nm (44 lb-in).
4. Torque:
  - 17 Nm (150 lb-in).

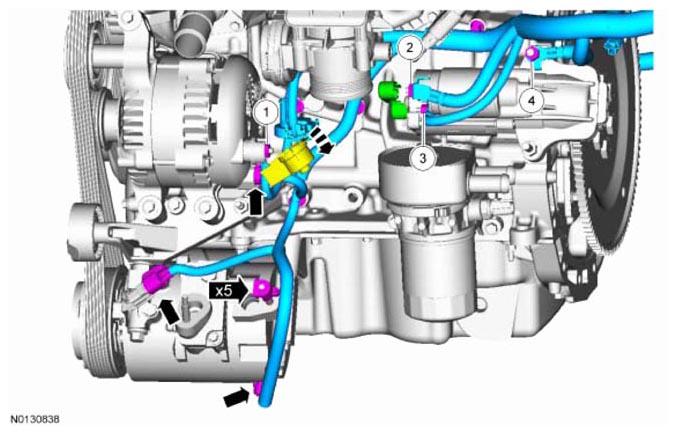

  Fig 3: Removing Alternator Wiring Harness Connector
  Courtesy of FORD MOTOR CO.
1. Torque:
  - 10 Nm (89 lb-in).
2. Torque:
  - 11 Nm (97 lb-in).

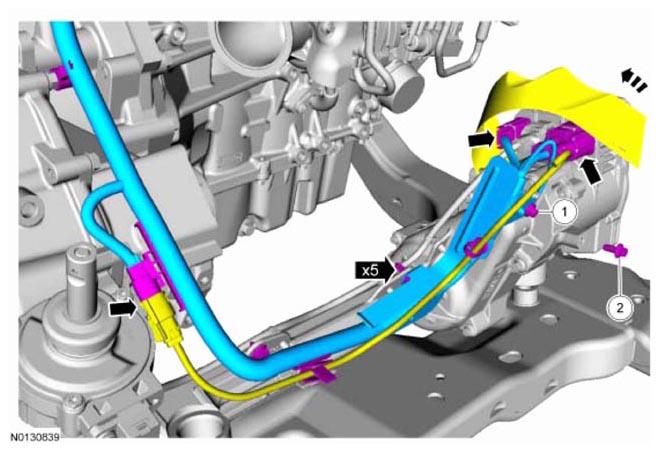

  Fig 4: Removing Flap Heat Shield
  Courtesy of FORD MOTOR CO.
