Window Glass - Rear Door: Removal

NOTE: The door glass run and bracket are part of the rear window fixed glass assembly and cannot be serviced separately.

Remove the rear door panel. REFER to DOOR TRIM PANEL - REAR .
Remove the rear door speaker. For additional information, REFER to SPEAKER -- DOOR .
Position aside the water shield.
Install the window control switch and position the door window glass to access the glass-to-regulator clamp locking tab.
Remove the inner and outer rear door belt weatherstrips.
Remove the bolt and the rear lower door window glass top run.
- To install, tighten to 8 Nm (71 lb-in).

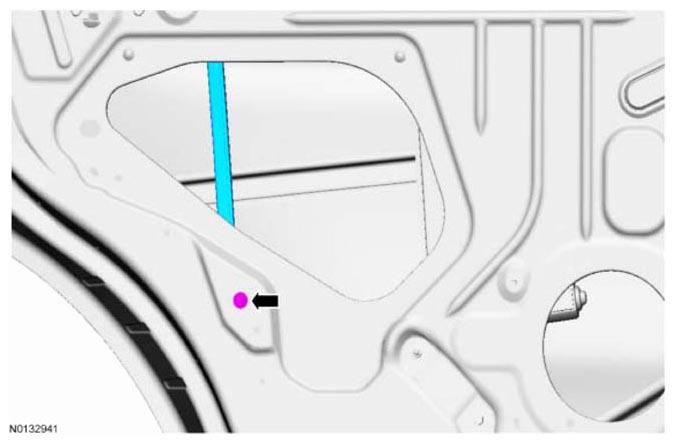

Fig 1: Locating Rear Lower Door Window Glass Bolt
Courtesy of FORD MOTOR CO.
Using a suitable tool, push the glass-to-regulator clamp locking tab inward then gently lift the glass upward slightly to release the glass from the regulator clamp.
1. To install, gently push glass down into the clamp until an audible click is heard, indicating the glass has seated correctly into the glass clamp.
Remove the door window glass out through the outboard side of the door.
