Window Glass - Front Door: Removal

  1. Remove the door speaker. REFER to SPEAKER -- DOOR .
  2. Position aside the water shield.
  3. Remove the interior door window glass belt moulding.
  4. Install the window control switch and position the door window glass to access the door window glass bolts.
  5. Remove the 2 door window glass bolts.
    • To install, tighten to 8 Nm (71 lb-in).

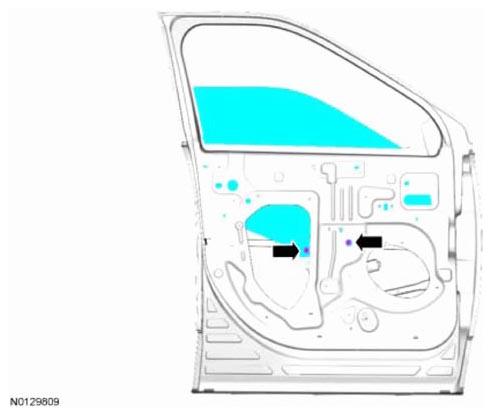

    Fig 1: Locating Door Window Glass Bolts
    G08040393Courtesy of FORD MOTOR CO.
  6. Tip the front of the glass downward and pull the front door window glass out through the top of the inboard side of the door.
