Window Glass - Fixed, Rear Door: Removal

NOTE: The door glass run and bracket are part of the rear window fixed glass assembly and cannot be serviced separately.

Remove the rear door panel. REFER to DOOR TRIM PANEL - REAR .
Remove the rear door speaker. REFER to SPEAKER -- DOOR .
Position aside the water shield.
Install the window control switch and position the door window glass to access the glass-to-regulator clamp locking tab.
Using a suitable tool, push the glass-to-regulator clamp locking tab inward then gently lift the glass upward slightly to release the glass from the regulator clamp.
1. To install, gently push glass down into the clamp until an audible click is heard, indicating the glass has seated correctly into the glass clamp.
While holding the door glass, carefully lower the regulator to the full DOWN position and allow the door glass to rest loosely on top of the regulator.
Loosen but do not remove the rear lower door window glass top run retainer bolt.
- To install, tighten to 8 Nm (71 lb-in).
Fig 1: Locating Rear Lower Door Window Glass Top Run Retainer Bolt
Courtesy of FORD MOTOR CO.
Remove the interior door window glass belt moulding.
Position aside the top run.

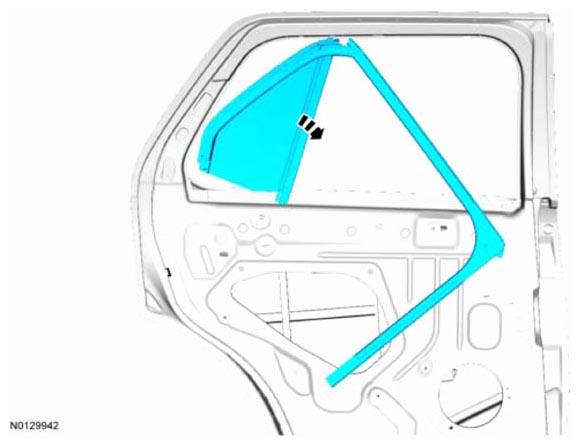

Fig 2: Removing Interior Door Window Glass Belt Moulding
Courtesy of FORD MOTOR CO.
Remove the door window glass top run bolt.
- To install, tighten to 11 Nm (97 lb-in).

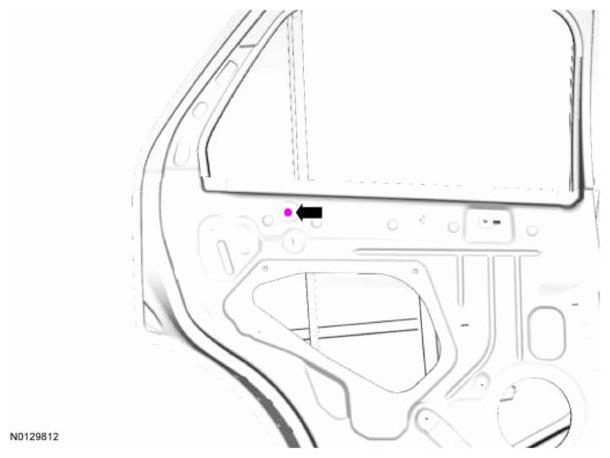

Fig 3: Locating Door Window Glass Top Run Bolt
Courtesy of FORD MOTOR CO.
NOTE: The door glass run and bracket are part of the rear window fixed glass assembly and cannot be serviced separately.

Remove the rear door fixed glass.
1. Tip the front of the fixed glass assembly down and pull the assembly out through the top inboard side of the door.

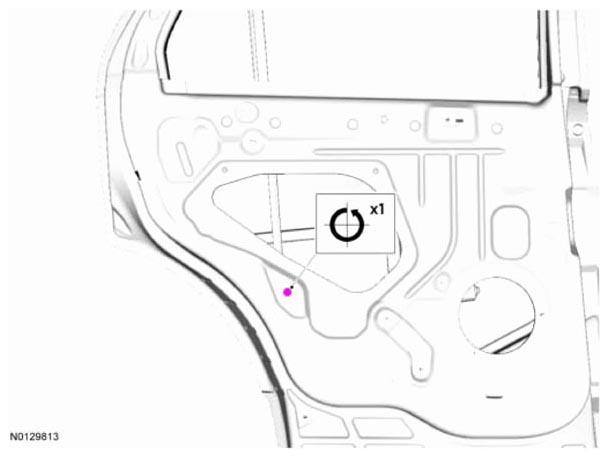

  Fig 4: Removing Rear Door Fixed Glass
  Courtesy of FORD MOTOR CO.
