Pinpoint Test

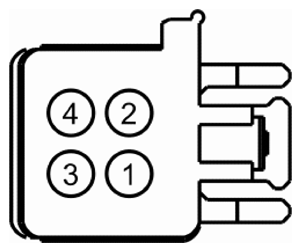

1. Disconnect: LH Front Window Control Switch C535B.
2. Ignition ON.
3. Measure:

   LH Front Window Control Switch			Ground
   C535B			Ground
   Pin	Circuit	Measurement / Action	Pin	Circuit
   3	CBP01 (BU)		-	Ground

Is the voltage greater than 11 volts?

• Yes: INSTALL a new LH front window control switch. REFER to Window Control Switch
• No: Diagnostic Routine G: The Delayed Accessory is Inoperative .
