Pinpoint Test

  1. CHECK THE DOOR AJAR SWITCH OPERATION
    1. Open and close the front doors. Verify the interior lights turn on when the doors are open, and off when the doors are closed.

    Do the interior lights operate normally?

  2. CHECK THE ACCESSORY DELAY RELAY
    1. Disconnect: Accessory Delay Relay.
    2. Carry out the accessory delay relay component test.

      Refer to OEM Wiring Diagrams - COMPONENT TESTING for schematic and connector information.

    Did the delayed accessory relay pass the component test?

    • Yes: For Base, GO to .

      For XLT or Limited, GO to  5.

    • No: INSTALL a new accessory delay relay.
  3. CHECK THE ACCESSORY DELAY RELAY OUTPUT CIRCUIT FOR AN OPEN OR SHORT TO GROUND
    1. Ignition OFF.
    2. Disconnect: BCM C2280D.
    3. Disconnect: LH Front Window Control Switch C535B.
    4. Measure:

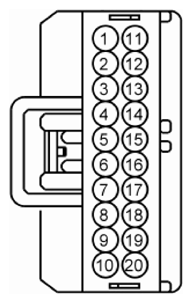

      LH Front Window Control Switch Ground
      G08040163
      G08040164
      C535B Ground
      Pin Circuit Measurement / Action Pin Circuit
      3 CBP01 (BU)
      G08040165
      - Ground
    5. Measure:
      LH Front Window Control Switch BCM
      G08040166
      G08040167
      C535B C2280D
      Pin Circuit Measurement / Action Pin Circuit
      3 CBP01 (BU)
      G08040168
      27 CBP01 (BU)

    Is the resistance greater than 10, 000 ohms between the window control switch and ground; and less than 3 ohms between the window control switch and BCM?

    • Yes: GO to .
    • No: REPAIR the circuit.
  4. CHECK THE CIRCUIT BREAKER
    1. Ignition OFF.
    2. Connect: BCM C2280D.
    3. Connect: LH Front Window Control Switch C535B.
    4. Install a new BCM circuit breaker 48 (30A).
    5. Operate each of the power windows.

    Do the power windows operate?

    • Yes: The system is operating correctly at this time.
    • No: GO to .
  5. CHECK FOR CORRECT BCM OPERATION
    1. Ignition OFF.
    2. Disconnect and inspect all BCM connectors.
    3. Repair:
      • corrosion (install new connector or terminals - clean module pins)
      • damaged or bent pins - install new terminals/pins as necessary
      • pushed-out pins - install new pins as necessary
    4. Reconnect the BCM connectors. Make sure they seat and latch correctly.
    5. Operate the system and determine if the concern is still present.

    Is the concern still present?
